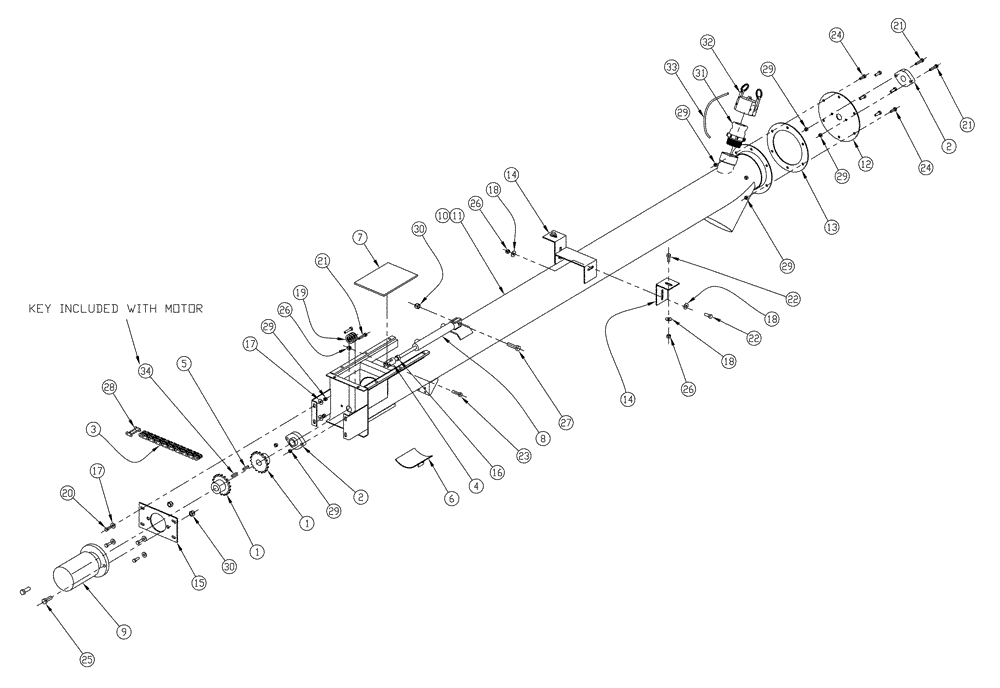

Запчасти Case IH 810 (02-047) - 6" AUGER TUBE GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT Bin Group

1

BN10181

SPROCKET

50B18 With 1" Bore

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN17701

#50-2 DBL RLR X 18 LN

1шт.

4

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

5

Q26

KEY,1/4" Sq x 1 1/4", Par

1шт.

6

BN304623

DOOR

CLEANOUT, 6 INCH

1шт.

7

BN304625

PLATE

GATE, 6 INCH

1шт.

8

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

See Fig. 07-001

1шт.

9

BN306232

MOTOR

Hydraulic, 6" Auger

1шт.

See Fig. 07-020

1шт.

10

BN321067

AUGER

6"

1шт.

11

87528879

AUGER

6", Start Serial: 21140

1шт.

n

87528879

AUGER

6"

1шт.

12

BN308063

PLATE

6 INCH AUGER, UPPER

1шт.

13

BN308067

GASKET

6 INCH AUGER, UPPER

1шт.

14

BN309460

ANGLE

BRACKET, 6" AUGER

2шт.

15

BN35935

PLATE

MTR MNT, AUXIL AUGER

1шт.

16

BN50075

NUT

1/2-20 HEX SS

1шт.

17

BN50142

WASHER,5/16", Stainless Steel

16шт.

18

BN50146

WASHER,3/8", Stainless

6шт.

19

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID X 1.5 OD X 10 GA

3шт.

21

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

22

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

23

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

24

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

6шт.

25

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

27

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

28

BN53159

LINK

CONN. 50-2

1шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

30

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

31

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

32

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

33

BN321087

STRAP

LANYARD, 11" POLYURETHANE

1шт.

34

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.
