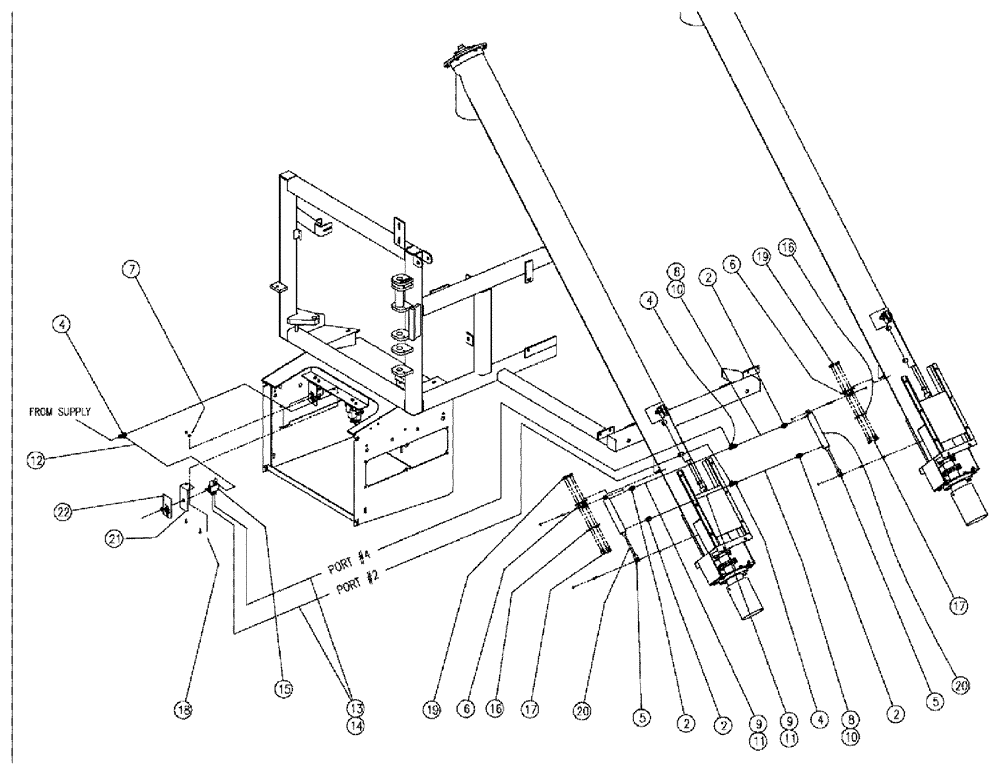

Запчасти Case IH 810 (02-046) - 6" AUGER PNEUMATIC GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT. Bin Group

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN2399408

UNION TEE

Tube UTC140

3шт.

5

BN300254

KIT

Clevis, .31 Rod

2шт.

6

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

BN303244

AIR HOSE,15.00"

1/4", Black

2шт.

9

BN303245

AIR HOSE,7.00"

1/4", Black

2шт.

10

BN303248

SLEEVE

LOOM, PLASTIC, 1/4" X 15"

2шт.

11

BN303249

SLEEVE

LOOM, PLASTIC, 1/4" X 7"

2шт.

12

BN303257

AIR HOSE,33.00"

1/4", Black

1шт.

13

BN303336

AIR HOSE,88.00"

1/4", Black

2шт.

14

BN303337

LOOM

PLASTIC, 1/4" X 88"

2шт.

15

NS

NOT SERVICED

Valve, Air, 4-Way, Start Serial: 6700

1шт.

See Fig. 01-010

1шт.

15a

BN304833

SOLENOID VALVE

AIR, DOUBLE

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

See Fig. 01-009

1шт.

15b

84269276

SEAL

Pressure, Pilot Valve

1шт.

16

BN50138

WASHER,1/4", SS

8шт.

17

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

18

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

19

BN55359

LOCK NUT,1/4"-20, SS

8шт.

20

BN68384

CYLINDER,Double Acting, 7.87mm Rod, 127mm Stroke

1.06 X 4, AIR

2шт.

21

87270334

MOUNTING PLATE

AIR VALVE, Start Serial: 6700

1шт.

22

87270536

DECAL

L/R DOOR CONTROL

1шт.
