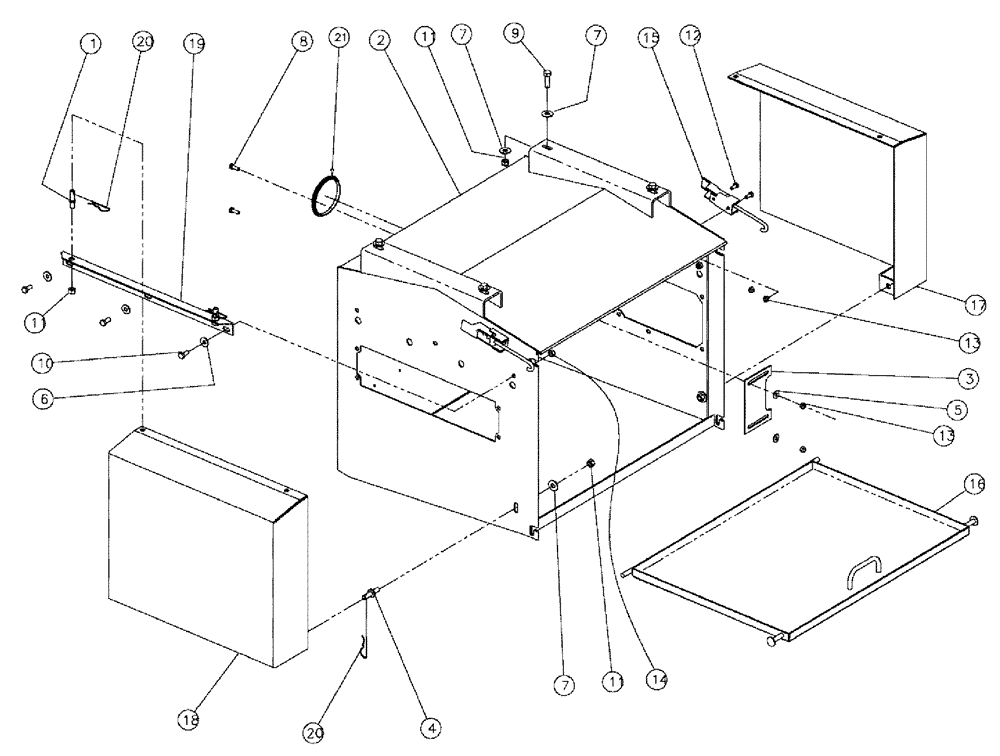

Запчасти Case IH 810 (02-040) - VALVE BOX, SINGLE BIN Bin Group

1

BN307047

PIN

3/8, WITH SHOULDER

4шт.

2

87268848

BOX

Valve - 438A

1шт.

3

BN306268

COVER

ACCESS, VALVE BOX

1шт.

4

BN310283

PIN

3/8, WITH .75 SHOULDER

2шт.

5

BN50138

WASHER,1/4", SS

2шт.

6

BN50142

WASHER,5/16", Stainless Steel

6шт.

7

BN50146

WASHER,3/8", Stainless

10шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

12

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

6шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

15

BN65808

LATCH

ADJUSTABLE DRAW

2шт.

16

BN67849

DOOR

W/M, VALVE BOX

1шт.

17

BN67852

COVER

W/M, SIDE, RH

1шт.

18

BN67855

COVER

W/M, SIDE, LH

1шт.

19

BN67857

ANGLE

MOUNT, SIDE COVER

2шт.

20

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

6шт.

21

87265990

PLUG

BUTTON, FLUSH TYPE

1шт.
