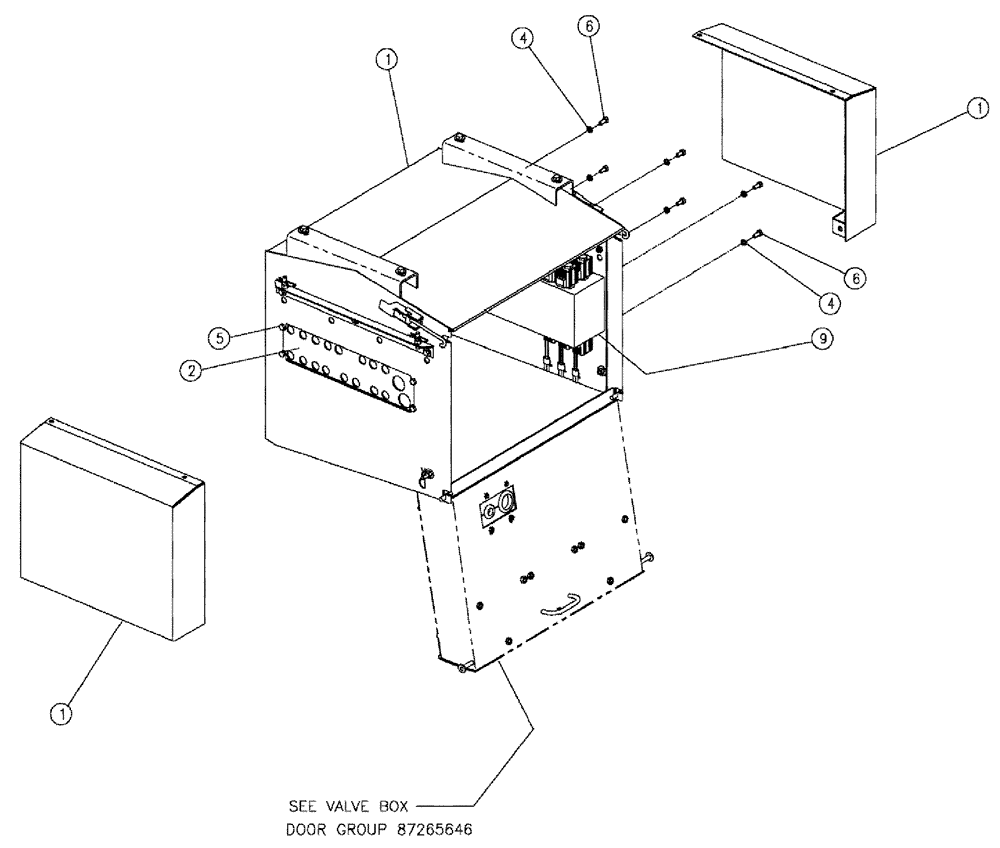

Запчасти Case IH 810 (02-038) - VALVE BOX GROUP, TRIPLE BIN Bin Group

1

NS

NOT SERVICED

Box, Group, Valve 438A

1шт.

See Fig. 02-039

1шт.

2

344012A1

HYDRAULIC VALVE

8 section manifold

1шт.

4

BN50144

LOCK WASHER

5/16, LW, SS

6шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

9

87267730

HYDRAULIC VALVE

Manifold, Triple With Fittings

1шт.

9

87267730R

REMAN-HYD VALVE

Reman Manifold, Triple With Fittings

1шт.

9

87267730C

CORE-VALVE HYD

Core Return Number

1шт.
