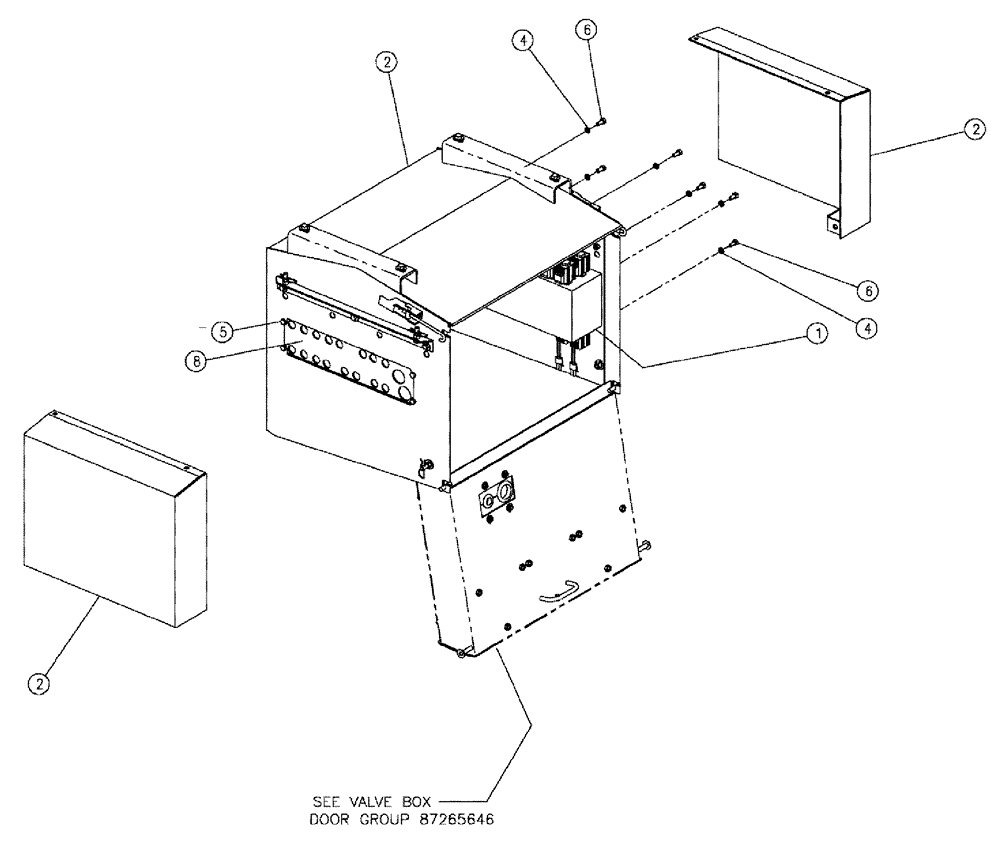

Запчасти Case IH 810 (02-036) - VALVE BOX GROUP, DOUBLE BIN Bin Group

1

87267742

HYDRAULIC VALVE

Manifold, Double, With Fittings

1шт.

See Fig. 07-012

1шт.

2

NS

NOT SERVICED

Box, Group, Valve 438A

1шт.

See Fig. 02-039

1шт.

4

BN50144

LOCK WASHER

5/16, LW, SS

6шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

8

87267722

VALVE

Block, 7 Bank, Without Auger

1шт.

See Fig. 07-011

1шт.
