(02-034) - BRACE, CENTER COAP SUPPORT

Запчасти Case IH 810 (02-034) - BRACE, CENTER COAP SUPPORT Bin Group

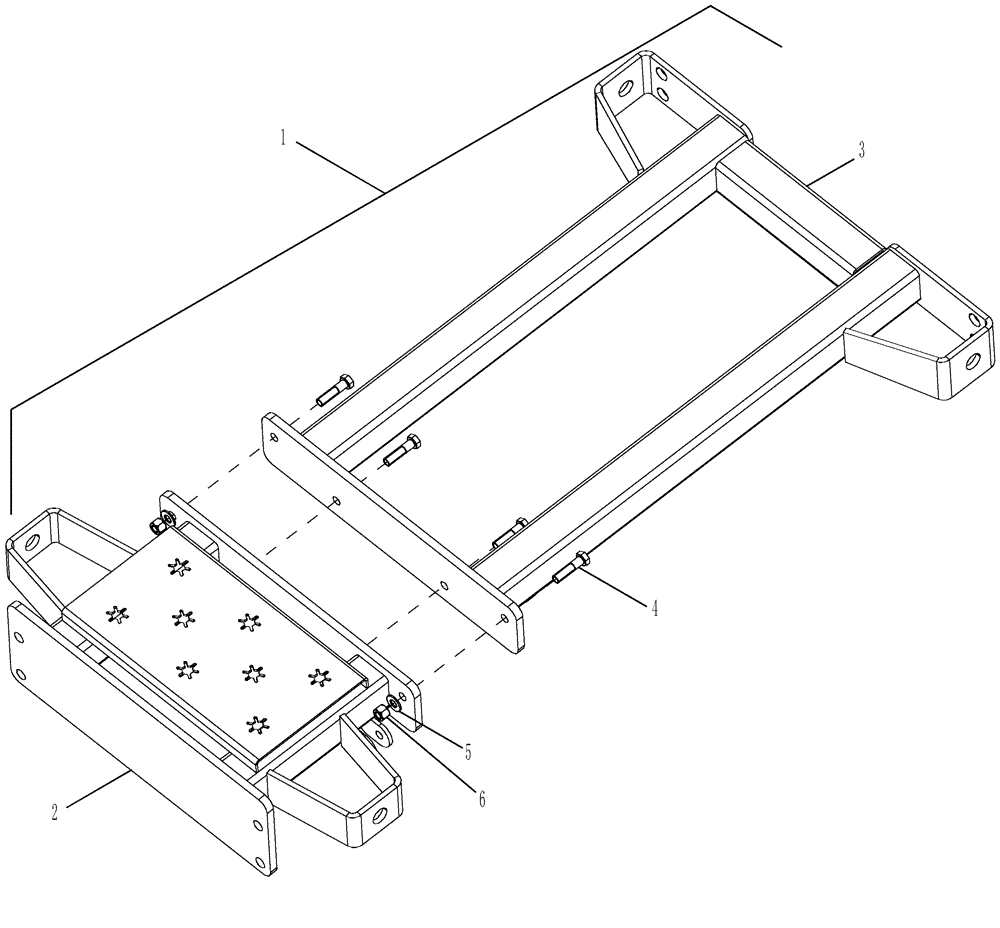

Схема запчастей Case IH 810 - (02-034) - BRACE, CENTER COAP SUPPORT Bin Group
4
2
1
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84185176

BRACKET

CENTER COAP SUPPORT

1шт.

2

84188692

BRACKET

REAR COAP SUPPORT

1шт.

3

84187133

BRACKET

FRONT COAP SUPPORT

1шт.

4

87342769

BOLT

.375 X 1.50 GR5

4шт.

5

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

4шт.

6

87343970

NUT,3/8"-16, G8, DOR

4шт.
