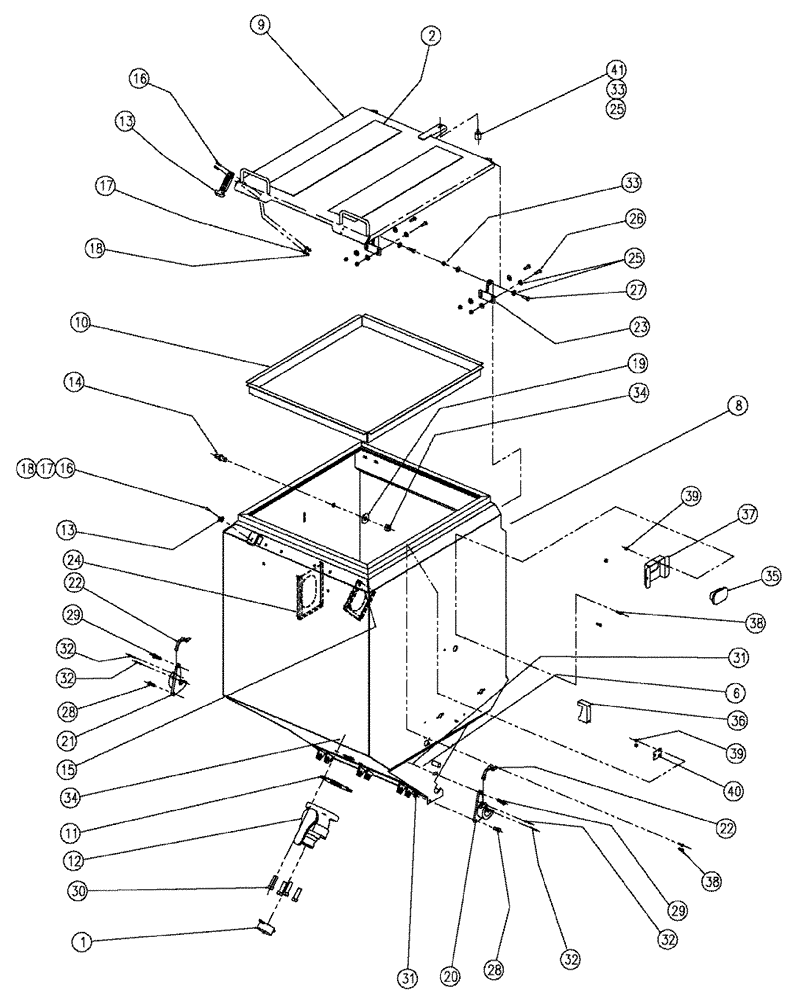

Запчасти Case IH 810 (02-031) - BIN, DOUBLE & TRIPLE BIN, LH, 50 CU. FT. Bin Group
№
Артикул
Название
Примечание
Количество
1
BN22901
DUST CAP,2" Cam Lever Dust Cap
2" Cam Lever
1шт.
2
BN54054
TAPE
SAFETY WALK, 6 X 29
2шт.
6
BN23452
WASHER,13/32" x 1.25 " OD x 12 GA, SS
2шт.
8
87266479
CONTAINER
Bin, LH Co-Ap-(50)
1шт.
9
87265914
COVER
Co-Ap Bin(50)
1шт.
10
BN312897
SCREEN
W/M, COAP, 50
1шт.
11
BN309335
FLANGE,2" ANSI Flange EPDM Gasket
2" ANSI FLANGE, EPDM
1шт.
12
BN309336
VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange
2" FP, ANSI FLANGE
1шт.
13
BN309337
LATCH
Flexible Draw
1шт.
14
BN309338
PIN
5/8 WITH SHOULDER
1шт.
15
87265979
WINDOW
5.5 x 5.5, Supplemental Bin
1шт.
16
BN310264
SCREW,#10 - 24 x 1 1/4", SST
10-24 X 1-1/4", BSH, SS
3шт.
17
BN310265
WASHER
10, Stainless Steel
3шт.
18
BN310266
BHD LOCK NUT,#10-24, Nylon, Stainless Steel
3шт.
19
BN310267
WASHER,5/8", Stainless Steel
1шт.
20
BN35705
BEARING HOUSING
VALMAR HSG, L.H.
1шт.
21
BN35706
BEARING HOUSING
VALMAR HSG, R.H.
1шт.
22
BN35707
BEARING CAP
Valmar - Latch, Stainless Steel
2шт.
23
87266476
HINGE
Co-Ap Cover (50)
2шт.
24
87265978
WINDOW
Co-Ap Bin
1шт.
25
BN50142
WASHER,5/16", Stainless Steel
13шт.
26
BN50232
BOLT,5/16"-18 x 1.00", Stainless Steel
4шт.
27
BN50234
BOLT,5/16"-18 X 1-1/4", Stainless Steel
2шт.
28
BN50254
BOLT,3/8"-16 x 1", Stainless
2шт.
29
BN50258
BOLT,3/8"-16 X 1.25", Stainless
2шт.
30
BN50648
BOLT,5/8"-11 X 2.00", Stainless Steel
4шт.
31
BN50759
LOCK NUT,3/8"-16, Nylon, Stainless
4шт.
32
BN55216
ROLL PIN
5/32 X 1-1/2, SS
4шт.
33
BN55361
NUT,5/16"-18, Nylon, Stainless
7шт.
34
BN55365
LOCK NUT,5/8"-11, Nylon, Stainless
5шт.
35
BN310648
LIGHT
1шт.
See Fig. 02-056
1шт.
36
BN319646
SENSOR
HOPPER LEVEL
1шт.
See Fig. 13-025
1шт.
37
BN310644
MOUNTING PLATE
W/M, BIN LIGHTS
1шт.
38
BN50697
BOLT,Hex, 1/4" - 20 x 1/2", SST
4шт.
39
BN55359
LOCK NUT,1/4"-20, SS
4шт.
40
BN319230
COVER
WIRE, HOP SENSOR
1шт.
41
BN25232
BUMPER
1.56" Dia - Urethane
1шт.
Выбрано товаров: 39
