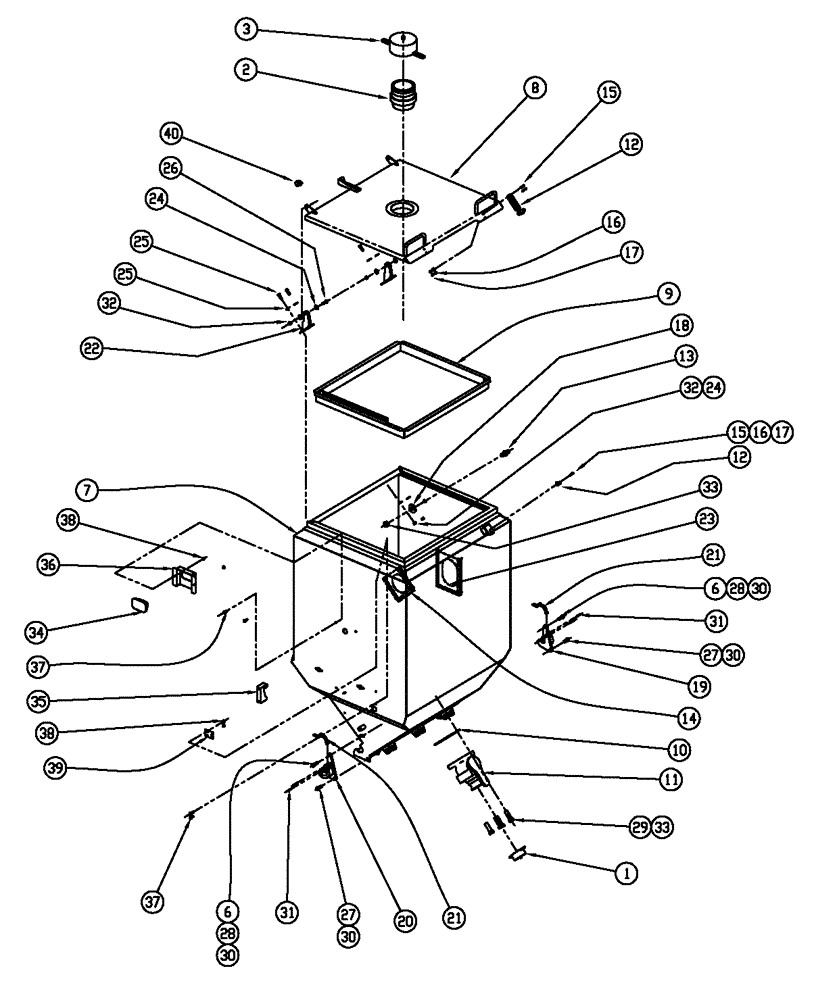

Запчасти Case IH 810 (02-028) - BIN, DOUBLE & TRIPLE BIN, RH, 37 CU. FT. Bin Group

2

BN22944

ADAPTER

male 4" Nyglass

1шт.

3

BN22945

CAP

4" DC NYGLASS

1шт.

4

BN23309

PIPE UNION NUT

4" Pipe Thread

1шт.

5

BN23310

GASKET

4"

1шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

87265884

CONTAINER

Bin, RH Co-Ap-(37)

1шт.

8

87265899

COVER

Co-Ap Bin (37)

1шт.

9

BN308141

SCREEN

W/M, COAP

1шт.

10

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" ANSI FLNG, EPDM

1шт.

11

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" FP, ANSI FLANGE

1шт.

12

BN309337

LATCH

Flexible Draw

1шт.

13

BN309338

PIN

5/8, WITH SHOULDER

1шт.

14

87265979

WINDOW

5.5 x 5.5, Supplemental Bin

1шт.

15

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

16

BN310265

WASHER

10, Stainless Steel

3шт.

17

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

18

BN310267

WASHER,5/8", Stainless Steel

1шт.

19

BN35705

BEARING HOUSING

VALMAR HSG, LH

1шт.

20

BN35706

BEARING HOUSING

VALMAR HSG, RH

1шт.

21

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

22

87265896

COVER

Hinge, 37 Co-Ap

2шт.

23

87265978

WINDOW

Co-Ap Bin

1шт.

24

BN50142

WASHER,5/16", Stainless Steel

10шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

26

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

27

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

28

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

29

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

31

BN55216

ROLL PIN

5/32 X 1-1/2, SS

4шт.

32

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

33

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

34

BN310648

LIGHT

1шт.

See Fig. 02-056

1шт.

35

BN319646

SENSOR

HOPPER LEVEL

1шт.

See Fig. 13-025

1шт.

36

BN310644

MOUNTING PLATE

W/M, BIN LIGHTS

1шт.

37

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

38

BN55359

LOCK NUT,1/4"-20, SS

4шт.

39

BN319230

COVER

WIRE, HOP SENSOR

1шт.

40

BN25232

BUMPER

1.56" Dia - Urethane

1шт.
