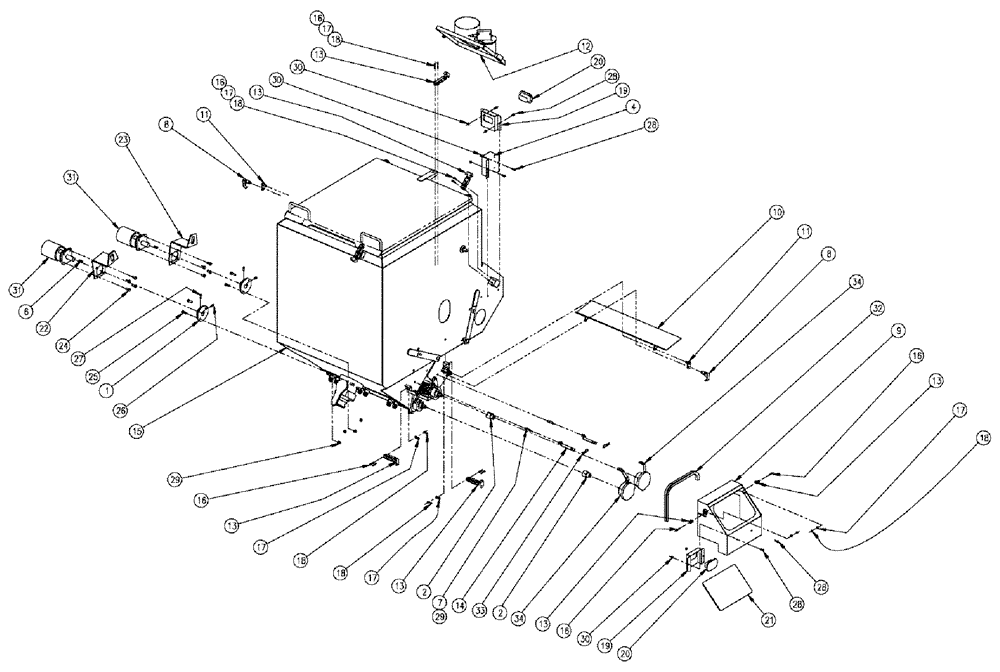

Запчасти Case IH 810 (02-018) - PARTS GROUP, TRIPLE BIN, RH, 50 CU. FT., W/ AUGER Bin Group

1

BN21398A

COUPLING

MACHINED

2шт.

2

BN22884

KIT

Adaptor

2шт.

4

86986421

BRACKET

Sensor Control

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

BN307047

PIN

3/8, WITH SHOULDER

2шт.

8

342478A1

LATCH

Swell

2шт.

9

BN308143

COVER

WIND, RH

1шт.

10

BN308146

COVER

COAP, LOWER

1шт.

11

BN308147

PIN

LOWER COVER PIVOT

2шт.

12

86986418

COVER

LH Bin (Sensor)

1шт.

See Fig. 02-032

1шт.

13

BN309337

LATCH

Flexible Draw

2шт.

14

BN312519

BRACKET

Bracket, Rate

2шт.

15

NS

NOT SERVICED

Bin Group, RH Triple-(50)

1шт.

See Fig. 02-026

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

10шт.

17

BN310265

WASHER

10, Stainless Steel

10шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

19

BN310644

MOUNTING PLATE

MOUNT, BIN LIGHTS

1шт.

20

BN310648

LIGHT

1шт.

See Fig. 02-056

1шт.

21

87265980

WINDOW

Hopper 12" x 8"

1шт.

22

BN35938

ARM

TORQUE COAP, R.H.

1шт.

23

BN35939

ARM

TORQUE COAP, L.H.

1шт.

24

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

25

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

26

BN50421

SET SCREW

5/16"-18 X 1/2"

2шт.

27

BN50473

SET SCREW

5/16"-18 X 3/4"

2шт.

28

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

29

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

30

BN55359

LOCK NUT,1/4"-20, SS

4шт.

31

BN65718

HYDRAULIC MOTOR

COAP BIN

2шт.

See Fig. 07-019

1шт.

32

BN67438

SEAL

WEATHER, WIND COVER

1шт.

33

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.

34

BN314948

SENSOR

APPLIC. RATE

2шт.

See Fig. 13-026

1шт.
