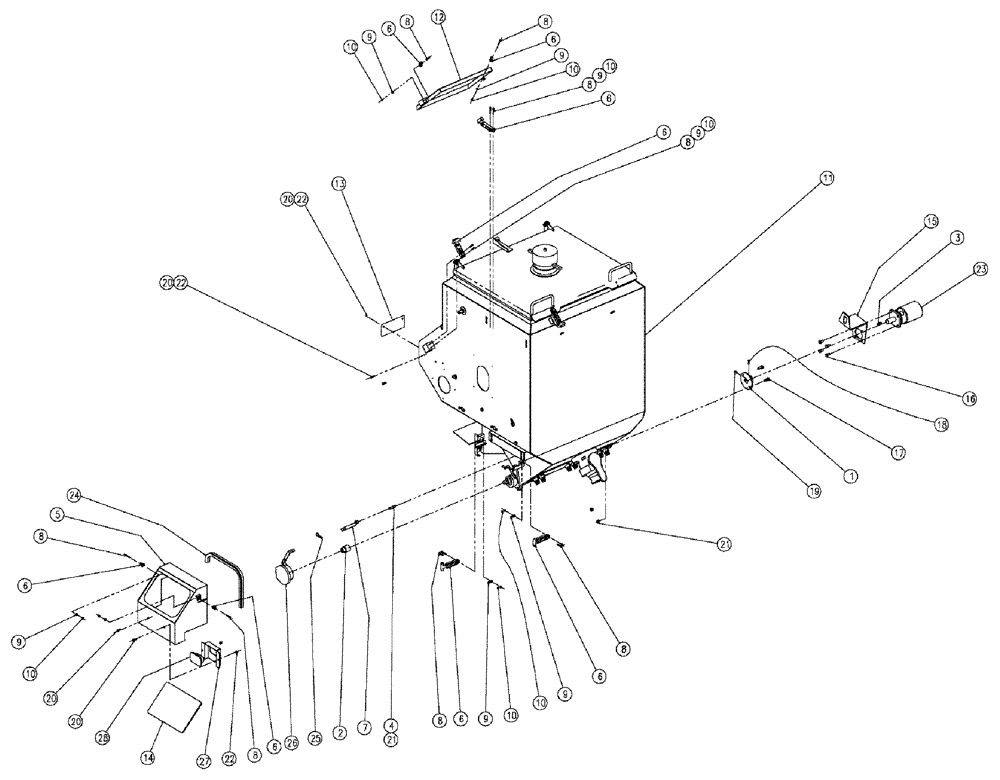

Запчасти Case IH 810 (02-009) - PARTS GROUP, DOUBLE BIN, LH, 37 CU. FT. Bin Group

1

BN21398A

COUPLING

MACHINED

1шт.

2

BN22884

KIT

Adaptor

1шт.

3

BN30283

STOP

1/4 SQ KEYSTOCK X 1

1шт.

4

BN307047

PIN

3/8 WITH SHOULDER

1шт.

5

BN308144

COVER

W/M, WIND, LH

1шт.

6

BN309337

LATCH

Flexible Draw

4шт.

7

BN312519

BRACKET

Bracket, Rate

1шт.

8

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

12шт.

9

BN310265

WASHER

10, Stainless Steel

12шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

12шт.

11

NS

NOT SERVICED

Bin Group, LH Double 37

1шт.

See Fig. 02-021

1шт.

12

BN310845

COVER

W/M, DOUBLE, LH

1шт.

13

86986590

COVER

WIRE HOLE

1шт.

14

87265980

WINDOW

Hopper 12" x 8"

1шт.

15

BN35939

ARM

TORQUE COAP, LH

1шт.

16

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

17

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

18

BN50421

SET SCREW

5/16"-18 X 1/2"

1шт.

19

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

20

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

22

BN55359

LOCK NUT,1/4"-20, SS

6шт.

23

BN65718

HYDRAULIC MOTOR

COAP BINS

1шт.

See Fig. 07-019

1шт.

24

BN67438

SEAL

WEATHER STRIP, WIND COVER

1шт.

25

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

26

BN314948

SENSOR

ASSY, APPLIC. RATE

1шт.

See Fig. 13-026

1шт.

27

BN310644

MOUNTING PLATE

W/M, BIN LIGHTS

1шт.

28

BN310648

LIGHT

GROUP

1шт.

See Fig. 02-056

1шт.
