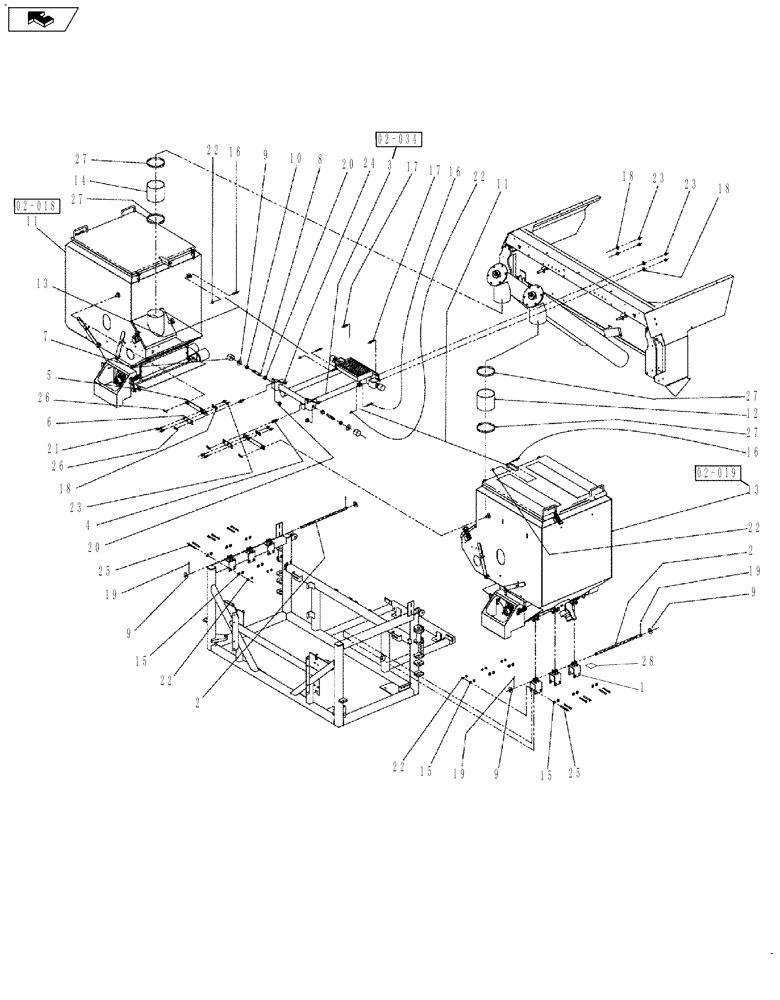

Запчасти Case IH 810 (02-007) - BIN MOUNT GROUP, TRIPLE BIN, 50 CU. FT., W/ AUGER Bin Group

1

86986160

HINGE

Co-Ap Bin

6шт.

2

BN306380

HINGE

3/4" rod, Co-Ap

2шт.

3

84185176

BRACKET

CENTER COAP SUPPORT

1шт.

See Fig. 02-034

1шт.

4

BN309338

PIN

5/8 WITH SHOULDER

2шт.

5

BN309339

BAR

latch, long

2шт.

6

BN309340

BAR

Latch, Short

2шт.

7

BN309409

BUMPER

2" DIA X 1-5/8" H, NPRN

4шт.

8

BN309410

THREADED ROD

3/4-10, threaded rod

4шт.

9

BN309412

WASHER,3/4, Stainless Steel

8шт.

10

BN309413

SCREW,3/4" - 10, SST

3/4-10, HJN, SS

4шт.

11

NS

NOT SERVICED

Bin With Parts, RH (50) Triple-Auger

1шт.

See Fig. 02-018

1шт.

12

NS

NOT SERVICED

Bin With Parts, LH (50) Triple-Auger

1шт.

See Fig. 02-019

1шт.

13

BN310661

CABLE

COAP BIN

2шт.

14

BN310662

HOSE,6.00" ID x 6.00"

COAP Bin

2шт.

15

BN50146

WASHER,3/8", Stainless

24шт.

16

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

17

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

18

BN50595

WASHER,1/2", Stainless

8шт.

19

BN50600

COTTER PIN

3/16" X 1-1/2"

4шт.

20

BN50661

NUT,3/4"-10, Stainless Steel

8шт.

21

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

22

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

23

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

24

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

2шт.

25

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

12шт.

26

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

4шт.

27

BN85064

HOSE CLAMP

6"

4шт.

28

84350652

SPACER

Co-ap Bin Lift, use as necessary

3шт.
