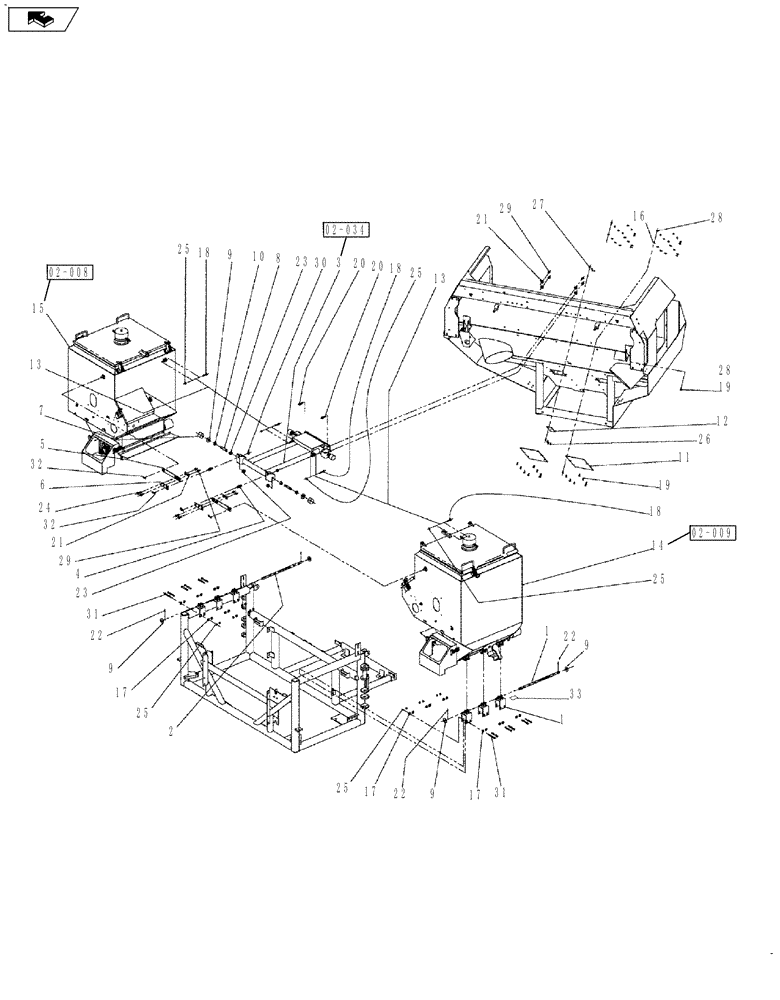

Запчасти Case IH 810 (02-002) - BIN MOUNT GROUP, DOUBLE BIN, 37 CU. FT. Bin Group

1

86986160

HINGE

Co-Ap Bin

6шт.

2

BN306380

HINGE

3/4" rod, Co-Ap

2шт.

3

84185176

BRACKET

CENTER COAP SUPPORT

1шт.

See Fig. 02-034

1шт.

4

BN309338

PIN

5/8 WITH SHOULDER

2шт.

5

BN309339

BAR

latch, long

2шт.

6

BN309340

BAR

Latch, Short

2шт.

7

BN309409

BUMPER

2" DIA X 1-5/8" H, NPRN

4шт.

8

BN309410

THREADED ROD

3/4-10, threaded rod

4шт.

9

BN309412

WASHER,3/4, Stainless Steel

8шт.

10

BN309413

SCREW,3/4" - 10, SST

3/4-10, HJN, SS

4шт.

11

BN309886

COVER

AUX AUGER HOLE

2шт.

12

BN309887

COVER

SENSOR HOLE

1шт.

13

BN310661

CABLE

COAP, BIN

2шт.

14

NS

NOT SERVICED

Bin With Parts, LH (37) Double

1шт.

See Fig. 02-009

1шт.

15

NS

NOT SERVICED

Bin With Parts, RH (37) Double

1шт.

See Fig. 02-008

1шт.

16

BN50142

WASHER,5/16", Stainless Steel

16шт.

17

BN50146

WASHER,3/8", Stainless

24шт.

18

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

20шт.

20

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

21

BN50595

WASHER,1/2", Stainless

8шт.

22

BN50600

COTTER PIN

3/16" X 1-1/2"

4шт.

23

BN50661

NUT,3/4"-10, Stainless Steel

8шт.

24

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

26

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

27

BN55359

LOCK NUT,1/4"-20, SS

4шт.

28

BN55361

NUT,5/16"-18, Nylon, Stainless

20шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

30

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

2шт.

31

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

12шт.

32

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

4шт.

33

84350652

SPACER

Co-ap Bin Lift, use as necessary

3шт.
