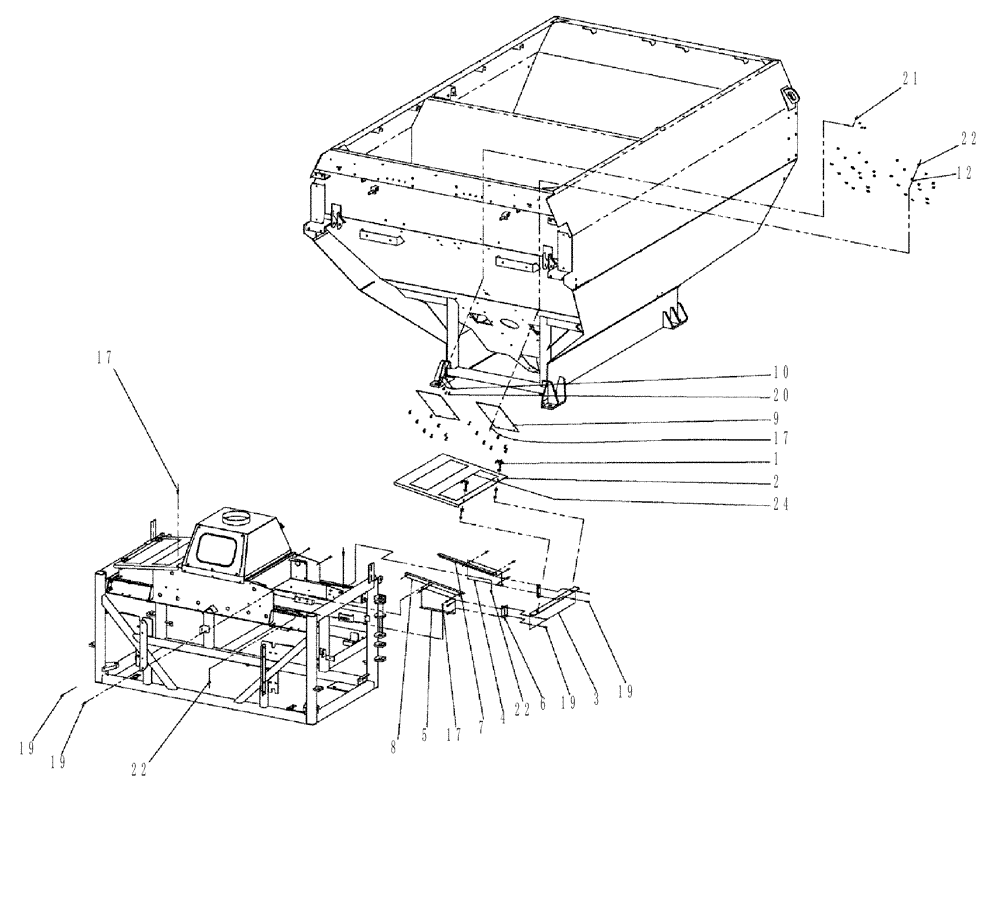

Запчасти Case IH 810 (02-001) - SINGLE BIN GROUP Bin Group

1

342478A1

LATCH

Swell

4шт.

2

BN307755

COVER

SINGLE BIN

2шт.

3

BN307756

COVER

END, SUPPORT

2шт.

4

BN307757

COVER

SIDE, SUPPORT, R.H.

2шт.

5

BN307758

COVER

SIDE, SUPPORT, L.H.

2шт.

6

BN307759

COVER

ANGLE, END, SUPPORT

4шт.

7

BN307760

COVER

ANGLE, SIDE, SPRT, R.H.

2шт.

8

BN307762

COVER

ANGLE, SIDE, SPRT, L.H.

2шт.

9

BN309886

COVER

AUX AUGER HOLE

2шт.

10

BN309887

COVER

SENSOR HOLE

1шт.

12

BN50142

WASHER,5/16", Stainless Steel

24шт.

17

BN50476

BOLT,5/16"-18 x 0.75", Stainless

26шт.

19

87270117

SELF-TAP SCREW,Hex Socket, 1/4" - 20 x 1/2"

1/4-20 X .5, HSH, STP, SS

32шт.

20

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

21

BN55359

LOCK NUT,1/4"-20, SS

4шт.

22

BN55361

NUT,5/16"-18, Nylon, Stainless

32шт.

24

BN65578

STRIP

SAFETY WALK, FLEXTRED, 6 X 26

4шт.
