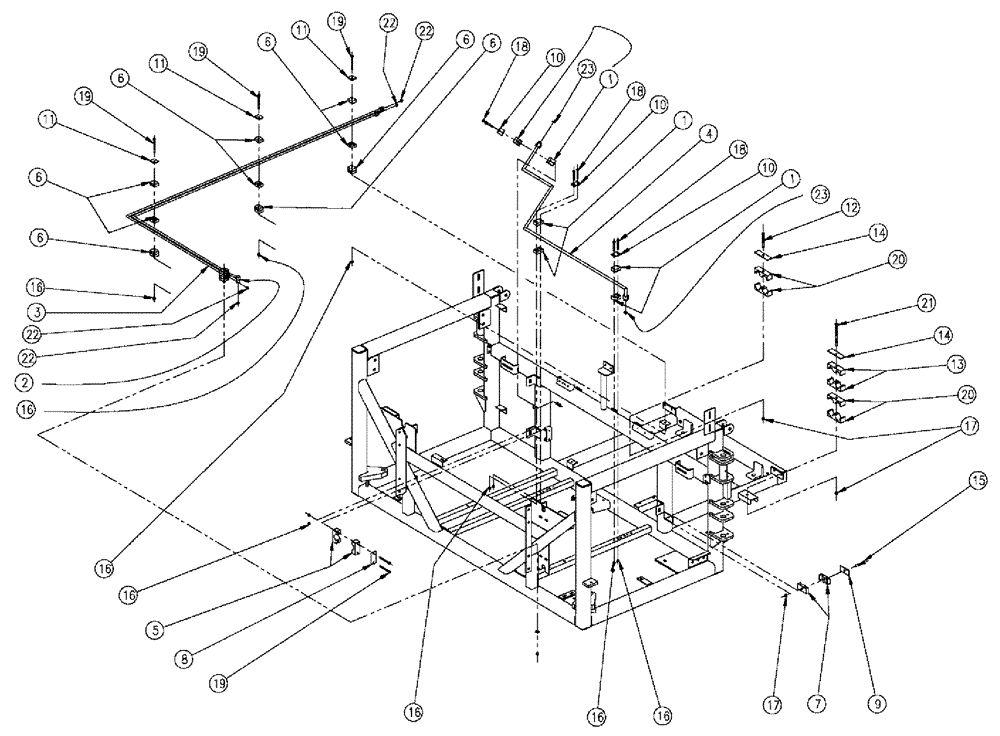

Запчасти Case IH 810 (01-027) - CONVEYOR AND AUGER HYDRAULIC TUBES GROUP Basic Unit

1

BN29783

CLAMP

Single, 1/2" Tube

3шт.

2

BN306975

TUBE

8 GATE

1шт.

3

BN306976

TUBE

8 GATE, ROD

1шт.

4

BN306981

TUBE

CONVEYOR, RH

1шт.

5

BN307082

CLAMP

PAIR, 1.25" TUBE

1шт.

6

BN307911

CLAMP

DUAL, 3/8 TUBE

6шт.

7

BN307913

CLAMP

DUAL, 1/2 PIPE

1шт.

8

BN309483

PLATE

Clamp Top, Single Clamp

1шт.

9

BN309484

PLATE

TOP, DUAL, SIZE 3

1шт.

10

BN309485

PLATE

TOP, SINGLE, SIZE 2

3шт.

11

BN309486

PLATE

TOP, DUAL, SIZE 1

3шт.

12

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

1шт.

13

BN309849

CLAMP

DUAL, 1.25 TUBE

1шт.

14

BN309850

PLATE

TOP, DUAL, SIZE 5

2шт.

15

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

1шт.

16

BN55359

LOCK NUT,1/4"-20, SS

11шт.

17

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.

18

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

6шт.

19

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

5шт.

20

BN311570

CLAMP

DUAL, 1.50 TUBE

2шт.

21

BN309845

SCREW,Hex, 5/16" - 18 x 5", SST

1шт.

22

BN305412

O-RING

FOR 6 FFOR

4шт.

23

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR 8 FFOR

2шт.
