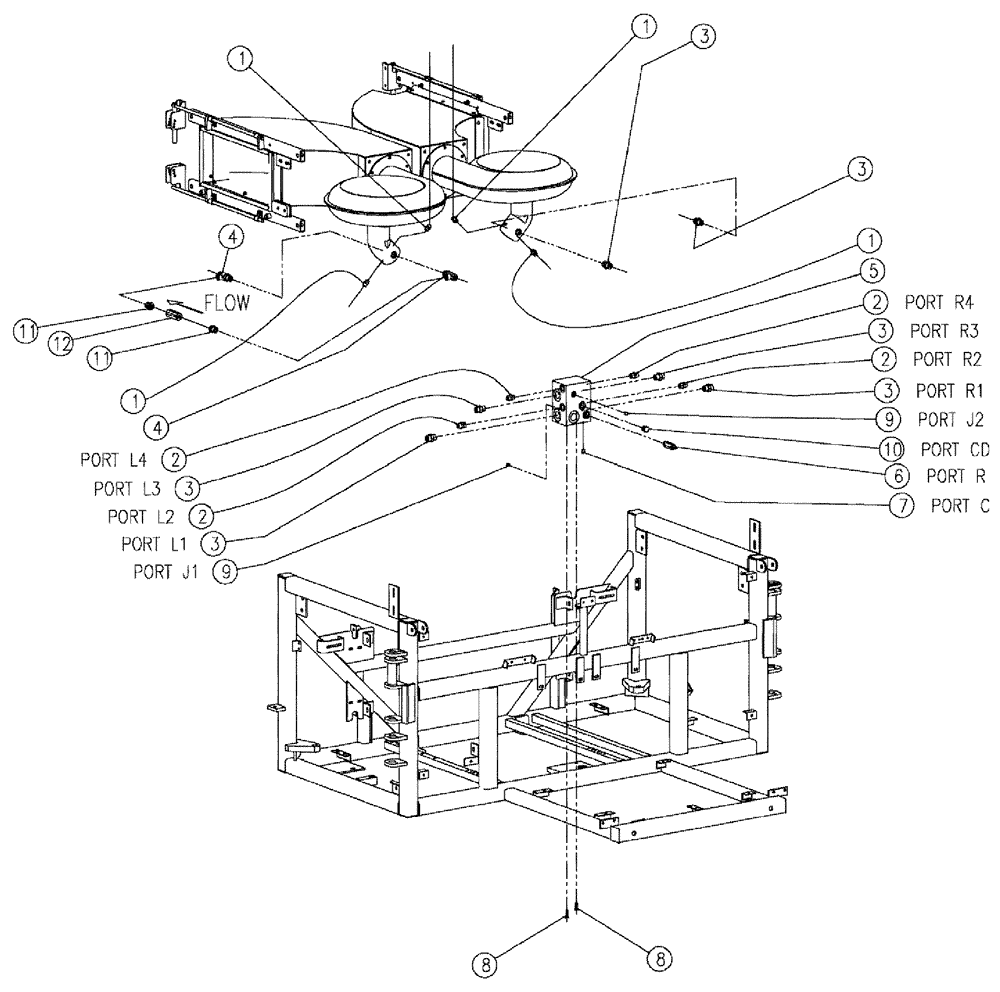

Запчасти Case IH 810 (01-025) - FAN LOOP HYDRAULIC GROUP Basic Unit

1

BN302649

FITTING

8MOR 6 MB

4шт.

2

BN302651

FITTING

8MOR 10 MB

4шт.

3

BN302655

FITTING

12 MOR-12 MB

6шт.

3

BN57233

FITTING

16 X 16

4шт.

4

BN302595

FITTING

12MOR 12MOR 12 MB

2шт.

5

BN306909

MANIFOLD

FAN LOOP

1шт.

6

BN307940

VALVE PRESSURE RELIE

DAST

1шт.

7

BN446048

PLUG

HEX O-RING, 6, 9/16-18

1шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

9

BN53991

PLUG

HEX O-RING, 7/16-20

2шт.

10

86625138

PLUG,7/18" - 14

1шт.

11

BN302650

FITTING

8 MOR-8 MB

2шт.

12

342101A1

CHECK VALVE

inline -8

1шт.
