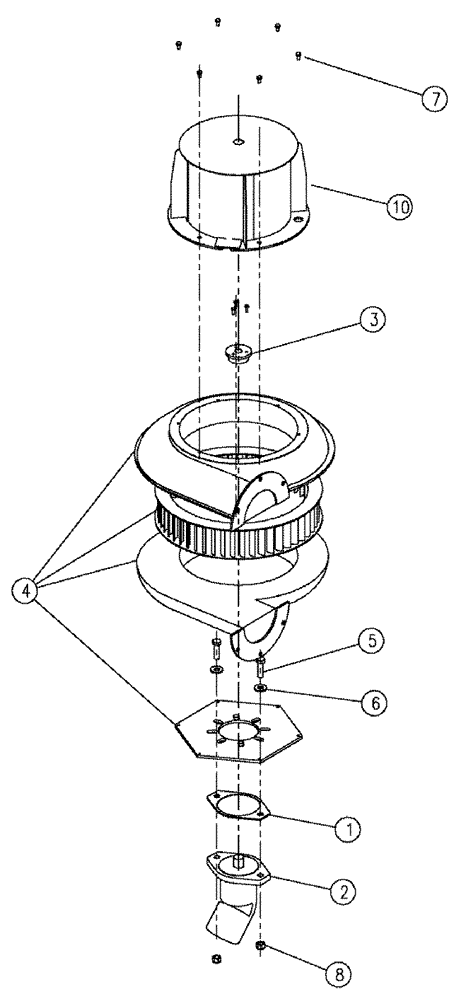

Запчасти Case IH 810 (01-021) - FAN GROUP, 6" CW Basic Unit

1

BN23813

GASKET

.060" Polypropylene

1шт.

2

BN35697

HYDRAULIC MOTOR

.73 REX

1шт.

See Fig. 07-017

1шт.

BN35697R

REMAN-HYD MOTOR

810 (9/09-12/11)

1шт.

BN35697C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

BN35698

BUSHING

TAPER, 20MM

1шт.

14723410

KEY

Not Shown, Used Between Ref 2 and Ref 3

1шт.

4

87265706

FAN

High Pressure, 6" CW

1шт.

See Fig. 01-022

1шт.

5

BN50594

BOLT,1/2"-13 x 1.75", Stainless

2шт.

6

BN50595

WASHER,1/2", Stainless

2шт.

7

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

9шт.

8

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

10

86986599

SCREEN

Blower

1шт.
