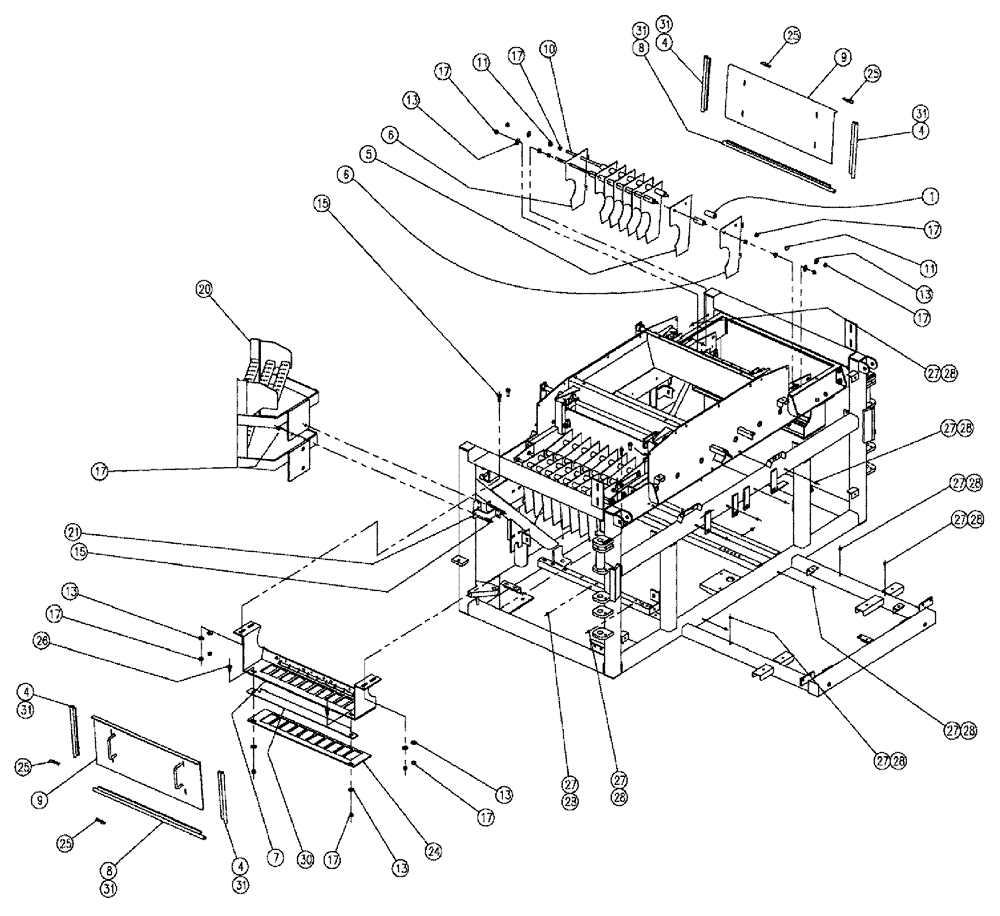

Запчасти Case IH 810 (01-017) - METER SYSTEM PARTS Basic Unit

1

87265982

SPACER

Divider, Flex-Air

32шт.

4

BN300592

SEAL

Seal, Door, Side

4шт.

5

BN307040

DIVIDER

14шт.

6

BN307041

DIVIDER

W/TAB

4шт.

7

BN307226

SUPPORT

W/M, AIR MANIFOLD

2шт.

8

BN307595

DOOR SEAL

DOOR, BOTTOM

2шт.

9

BN307596

DOOR

W/M, DIVIDER

2шт.

10

BN35414

ROD

THD, 3/8-16 UNC X 24.75

4шт.

11

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

13

BN50146

WASHER,3/8", Stainless

20шт.

15

BN50254

BOLT,3/8"-16 x 1", Stainless

10шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

30шт.

20

87267275

LADDER

Lower

1шт.

21

87267279

MOUNTING PLATE

Ladder

1шт.

24

BN68581

GASKET

VENTURI TO DIVIDER

2шт.

25

87265724

PIN

CLIK (1/4" DIA), Start Serial: 5931

4шт.

25a

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

4шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

26

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

27

435437A1

CABLE TIE,3/16" x 7 1/4"

RAP, "EYE TY" 06205 3M

19шт.

28

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

19шт.

30

86986185

STOP DEVICE

Divider

2шт.

31

87267748

PLUG

FOAM

12шт.
