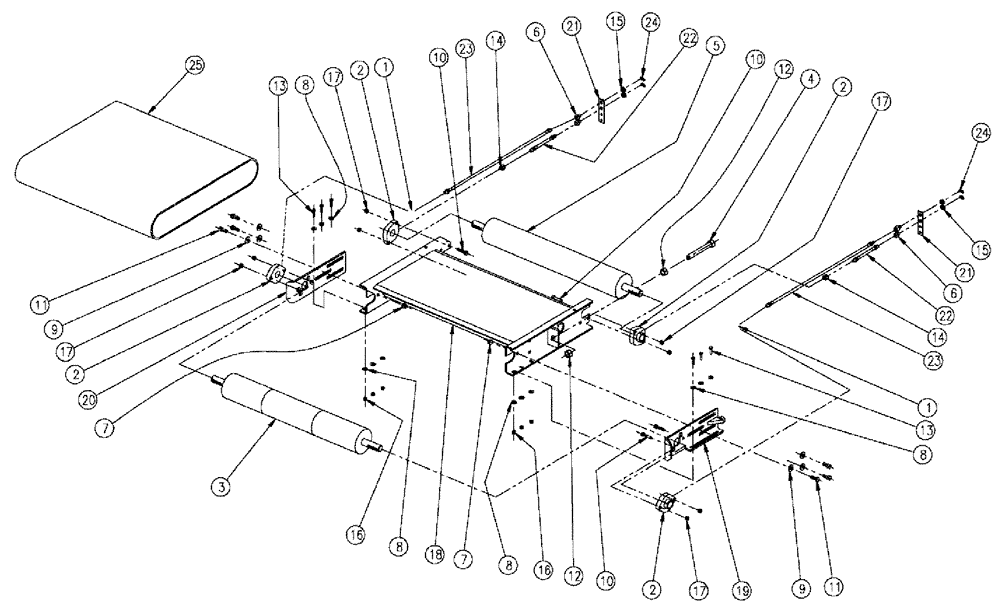

Запчасти Case IH 810 (01-015) - BELT CARTRIDGE GROUP, FLEX, 60’ & 70’ Basic Unit

1

BN311142

ELBOW

BODY, 90 DEG

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

4шт.

3

343498A1

PULLEY

conv-tapered (Vulcan)

1шт.

4

BN35404

ADJUSTER

TAKEUP WELDMENT

2шт.

5

343499A1

PULLEY

Conveyor, Volcanized

1шт.

6

BN35805

ADAPTER

str 1/8 npsm-nptf

4шт.

7

BN50062

LOCK NUT,3/8"-16, Stainless Steel

6шт.

8

BN50138

WASHER,1/4", SS

12шт.

9

BN50146

WASHER,3/8", Stainless

6шт.

10

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

8шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

6шт.

12

BN50529

NUT

5/8-11, HH, SS

4шт.

13

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

6шт.

14

BN53567

ADAPTER

1/4"-28 x 1/8" nptf

2шт.

15

BN53570

BHD LOCK NUT

4шт.

16

BN55359

LOCK NUT,1/4"-20, SS

6шт.

17

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

18

BN63524

FRAME

W/M, FLOOR & ROLLER

1шт.

19

BN63531

MOUNTING PLATE

W/M-ROLLER, LH

1шт.

20

BN63532

MOUNTING PLATE

W/M-ROLLER, RH

1шт.

21

BN67993

BRACKET

Grease Line, Conv.

2шт.

22

BN67999

HOSE

Grease, 9"

2шт.

23

BN68186

HOSE

GREASE, 32.00

2шт.

24

BN69951

CAP

Grease

4шт.

25

BN15031

CONVEYOR BELT,26.50" W x 53.25" L

1шт.
