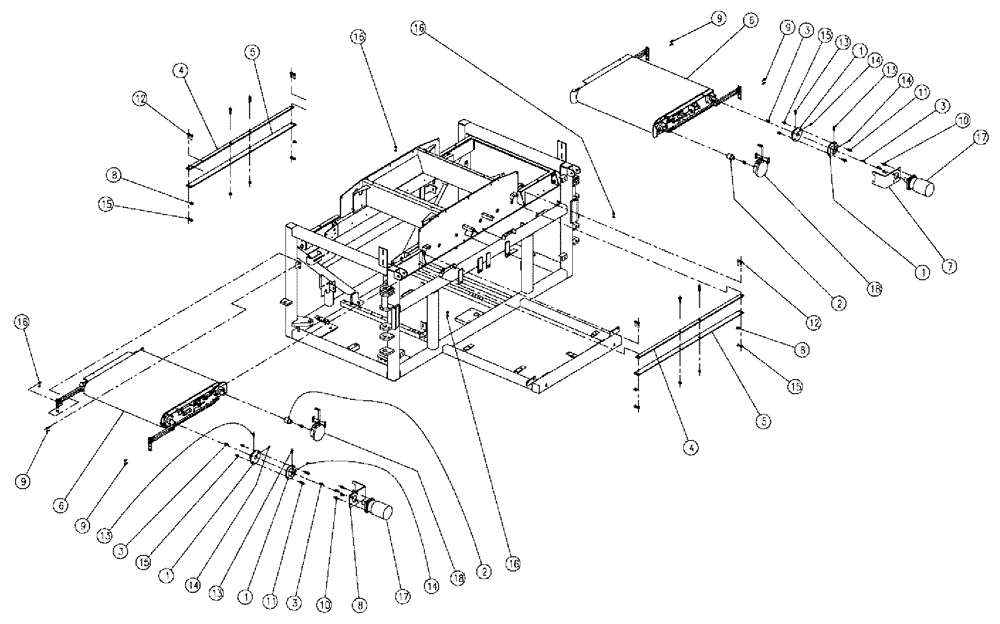

Запчасти Case IH 810 (01-014) - PARTS GROUP, BELT CARTRIDGE, 60’ & 70’ Basic Unit

1

BN21398A

COUPLING

MACHINED

4шт.

2

BN22884

KIT

Adaptor

2шт.

3

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

4шт.

4

BN307005

SPACER

CARTRIDGE MOUNT

2шт.

5

BN307006

SECURING STRAP

CARTRIDGE MOUNT

2шт.

6

NS

NOT SERVICED

BELT-T PULLY

2шт.

See Fig. 01-015

1шт.

7

BN35888

ARM

TORQUE CONVEYOR

2шт.

8

BN50146

WASHER,3/8", Stainless

4шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

10

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

12

BN50258

BOLT,3/8"-16 X 1.25", Stainless

12шт.

13

BN50421

SET SCREW

5/16"-18 X 1/2"

4шт.

14

BN50473

SET SCREW

5/16"-18 X 3/4"

4шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

20шт.

16

BN55359

LOCK NUT,1/4"-20, SS

8шт.

17

BN65718

HYDRAULIC MOTOR

CONVEYOR BELT, SEE FIG. 07-019

2шт.

18

BN314948

SENSOR

APPLIC. RATE, SEE FIG. 13-026

2шт.
