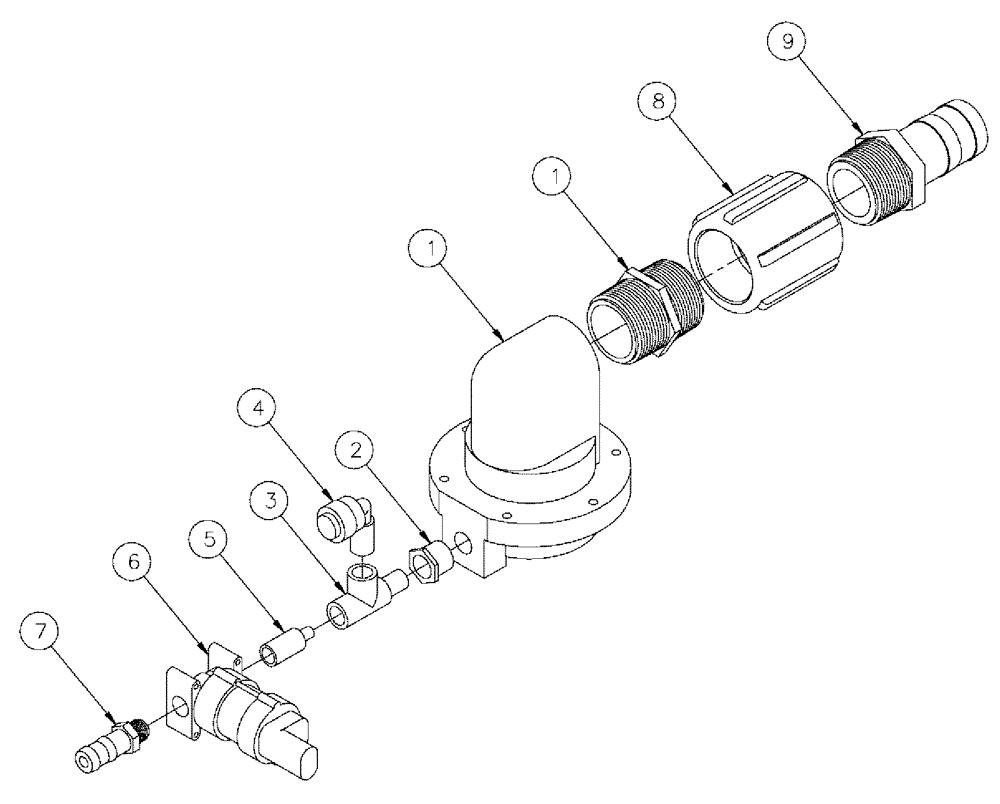

Запчасти Case IH 810 (09-004) - CHAMBER GROUP, RH (16) - FOAM MARKER

1

BN307636

CHAMBER

Foam Mixing

1шт.

2

BN313188

BUSHING

3/8 NPT 1/4 NPT, SS

1шт.

3

BN313189

TEE

4-4-4, NPT, SS

1шт.

4

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

5

87269827

VENTURI

Foamer Assembly Poly

1шт.

5a

86986808

NIPPLE

1/4" Short, Poly

1шт.

Associated Part of Venturi P/N 87269827

1шт.

5b

87269828

AIR INTAKE TUBE

BARB, 1-1/4 NPT X 1-1/4 HS

1шт.

Associated Part of Venturi P/N 87269827

1шт.

6

BN307938

VALVE

SOLENOID, 1/4 NPT

1шт.

7

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

8

BN305269

COUPLING

COUPLER, 1-1/4" POLY

1шт.

9

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.
