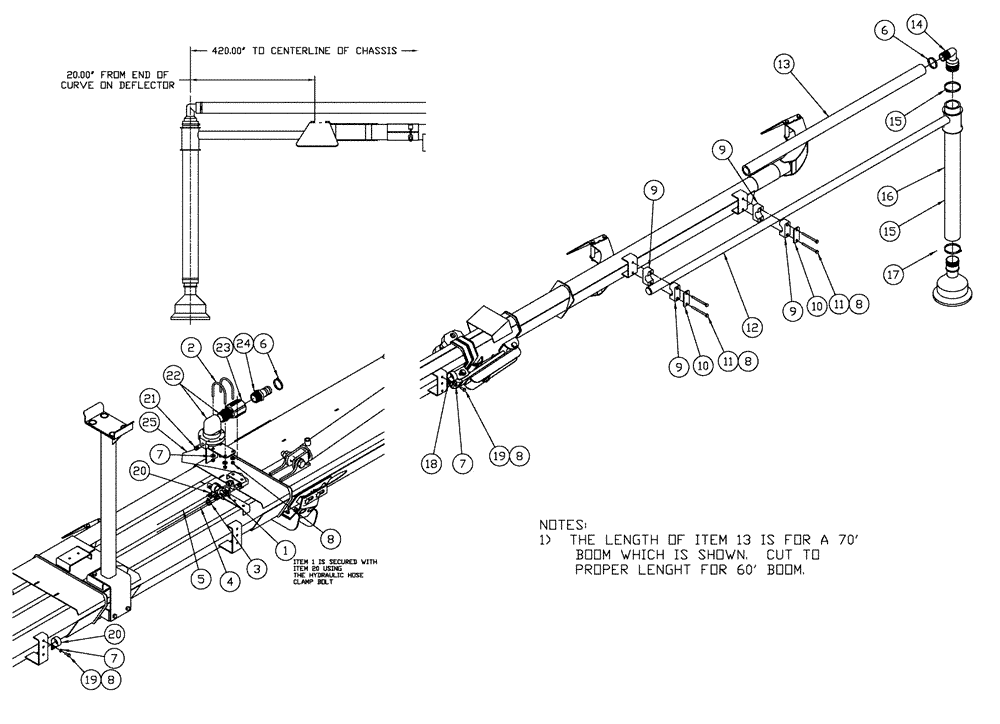

Запчасти Case IH 810 (09-003) - FOAM TUBE GROUP, LH (16) - FOAM MARKER

1

84163486

VENTURI

Assembly

1шт.

See Fig. 09-009

1шт.

2

87266747

U-BOLT

1/4"-20 x 2.5 ID x 3"

2шт.

3

87485006

CLAMP,0.5" - 0.91"

#8, 304 SS

1шт.

4

86986173

HOSE,0.50" ID x 200.00"

1шт.

5

86986175

TUBE,0.375" DIA x 200" L

SYNFLEX, 3/8" X 200"

1шт.

6

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

7

BN50138

WASHER,1/4", SS

8шт.

8

BN55359

LOCK NUT,1/4"-20, SS

12шт.

9

BN67054

CLAMP

1.315" OD

4шт.

10

BN309483

PLATE

Clamp Top, Single Clamp

2шт.

11

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

12

86986166

TUBE,69.10" L

Foam Drop

1шт.

13

87266751

HOSE

1-1/4" X 262", TYPE K

1шт.

14

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

15

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

16

87268528

HOSE,2.00" ID x 26.00"

Foam Drop

1шт.

17

BN2403252

BELL

Foam Marker

1шт.

18

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

3шт.

19

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

20

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

2шт.

21

BN2399412

ADAPTER

Tube MC38038

1шт.

22

BN307636

CHAMBER

Foam Mixing

1шт.

23

BN305269

COUPLING

1.25 FP

1шт.

24

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

25

BN2292088

AIR INTAKE TUBE

3/8" Black

1шт.

Cut 15" from bulk roll

1шт.
