(01-013) - SKIRTING GROUP, FLEX, 60’ & 70’

Запчасти Case IH 810 (01-013) - SKIRTING GROUP, FLEX, 60’ & 70’ Basic Unit

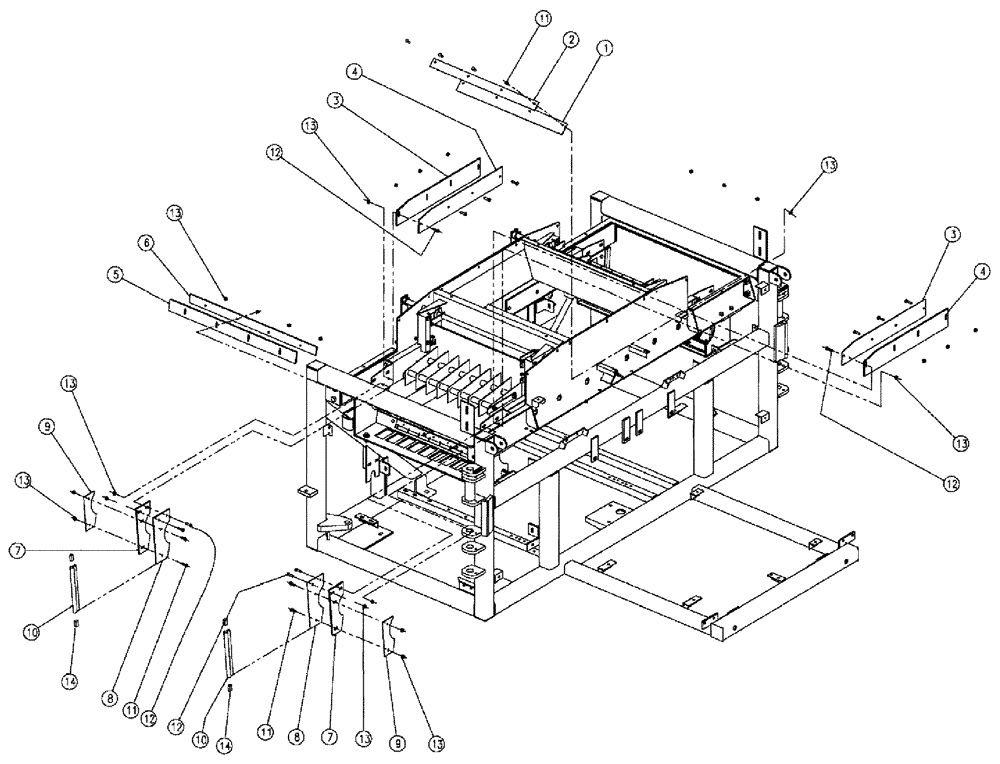

Схема запчастей Case IH 810 - (01-013) - SKIRTING GROUP, FLEX, 60’ & 70’ Basic Unit
8
10
13
6
9
13
4
12
12
13
8
13
9
12
11
11
13
7
10
2
1
14
11
3
13
7
3
5
13
4
13
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307227

SEAL

CENTER, CONVEYOR

2шт.

2

BN307228

STRAP

SEAL, CENTER, CONVEY

2шт.

3

BN307229

SEAL

SIDE, CONVEYOR

4шт.

4

BN307230

STRAP

SEAL, SIDE, CONVEYOR

4шт.

5

BN307231

SEAL

BELT, BOTTOM

2шт.

6

BN307232

STRAP

SEAL, BELT, BOTTOM

2шт.

7

BN307233

SEAL

BELT, SIDE

4шт.

8

BN307234

STRAP

SEAL, BELT, SIDE

4шт.

9

BN307235

SUPPORT

SEAL, BELT, SIDE

4шт.

10

BN307236

DOOR SEAL

SEAL, DIVIDER DOOR

4шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

16шт.

12

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

24шт.

13

BN55359

LOCK NUT,1/4"-20, SS

48шт.

14

87267748

PLUG

FOAM

8шт.
