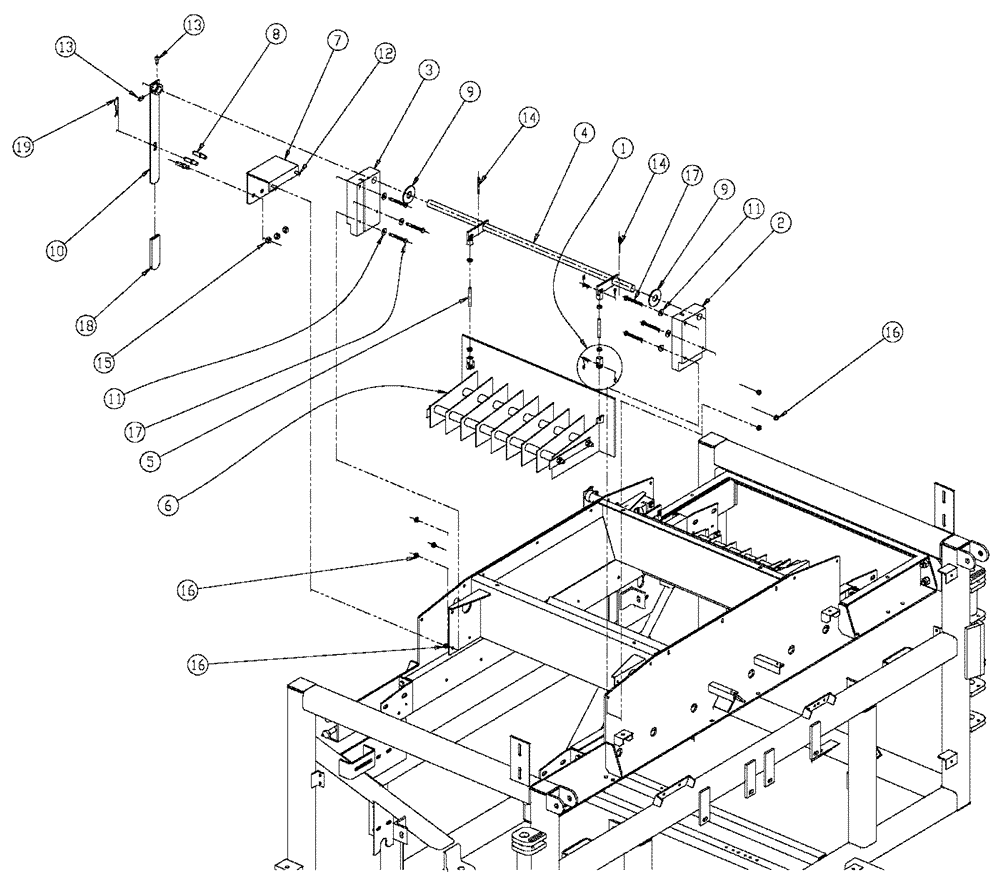

Запчасти Case IH 810 (01-012) - GATE GROUP, FLEX, 60’ & 70’ Basic Unit

1

BN300254

KIT

Clevis, .31 Rod

8шт.

2

BN306615

SLIDE

METER GATE, RH

2шт.

3

BN306616

SLIDE

METER GATE, LH

2шт.

4

BN307008

SHAFT

W/M, GATE

2шт.

5

BN307011

ROD

THREADED, 5/16, SS

4шт.

6

87270728

GATE ASSY

2шт.

7

BN307046

MOUNT

MOUNT, GATE ADJUST

2шт.

8

BN307047

PIN

3/8 WITH SHOULDER

6шт.

9

BN309412

WASHER,3/4, Stainless Steel

4шт.

10

BN35411

HANDLE

W/M, GATE, CONVEYOR

2шт.

11

BN50138

WASHER,1/4", SS

12шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

13

BN50421

SET SCREW

5/16"-18 X 1/2"

4шт.

14

BN50604

COTTER PIN

1/8 X 1-1/2

4шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

16

BN55359

LOCK NUT,1/4"-20, SS

16шт.

17

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

12шт.

18

BN65711

CAP

RECT, 1.25 X. 162 X 4.00

2шт.

19

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.
