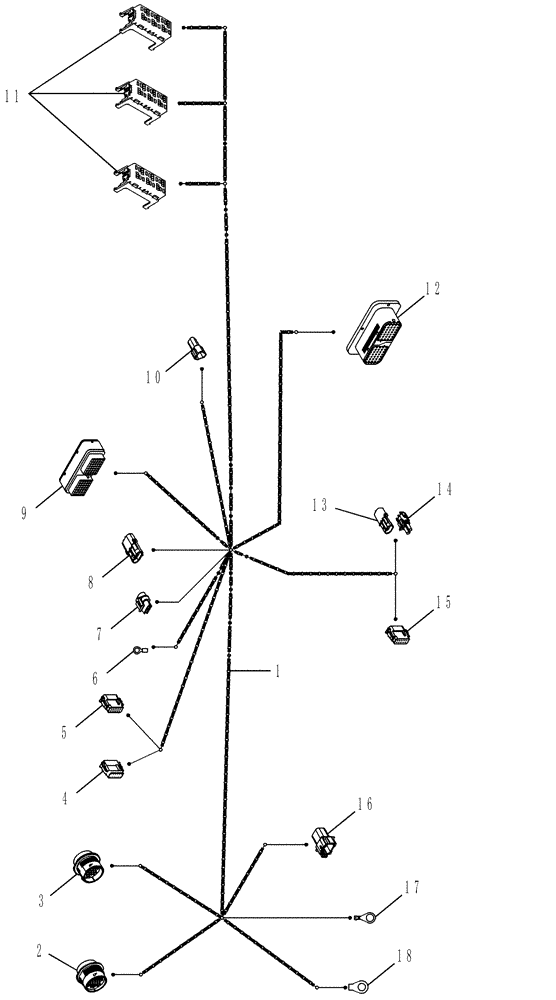

Запчасти Case IH 810 (13-018[02]) - HARNESS, RH COMP, VIPER-PRO (06) - ELECTRICAL

1

87703501

WIRE HARNESS

RH Comp., VIPER

1шт.

2

87716941

MULTIPOLE CONNECTOR,Male, 31 Pole

Hyd Harness Interface, BH4

1шт.

2a

87271930

NUT

1шт.

3

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Prod Harness Interface, BH5

1шт.

3a

87271930

NUT

1шт.

4

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Boom/Speed Node, P051

1шт.

4a

87705198

WEDGE

1шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Boom Speed Node, P049

1шт.

5a

87705198

WEDGE

1шт.

6

84237741

ELEC. TERMINAL PIN,10 - 16 mm2

Chassis Ground, G1

1шт.

7

87688712

WIRE CONNECTOR,Female

GPS Fuse, F200

1шт.

7a

87688863

CAP

1шт.

7b

87693742

FUSE,5A

1шт.

8

87692858

ELEC CONNECTOR,Male

GPS Interface, J200

1шт.

9

87707115

CONTACT HOUSING,Female, 70 Pole

Application Interface, P080

1шт.

10

87695723

ELEC CONNECTOR,Male , 3 Pole

Vehicle Can Buss Interface, J090

1шт.

10a

87695625

WIRE CONNECTOR,Locking, Green

1шт.

11

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 4, 5, & 6

3шт.

11a

87704921

LOCK

6шт.

11b

86509590

RELAY

16шт.

12

87707114

CONTACT HOUSING,Male, 70 Pole

RH Console Interface, J128

1шт.

13

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Foam Advance Enable, J202

1шт.

14

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Advance Jumper, P202

1шт.

15

87700156

CONTACT HOUSING,Female, 12 Pole

Foam Marker, P204

1шт.

16

87700321

ELEC CONNECTOR,Female, 8 Cavities

Prod/Tray Interface, J903

1шт.

16a

87695925

1шт.

17

84140739

TERMINAL CONNECTOR,Ring, M12, 2.50 - 6.00mm

Battery Power, BH1

1шт.

18

84182579

Clean Ground, BH2

1шт.
