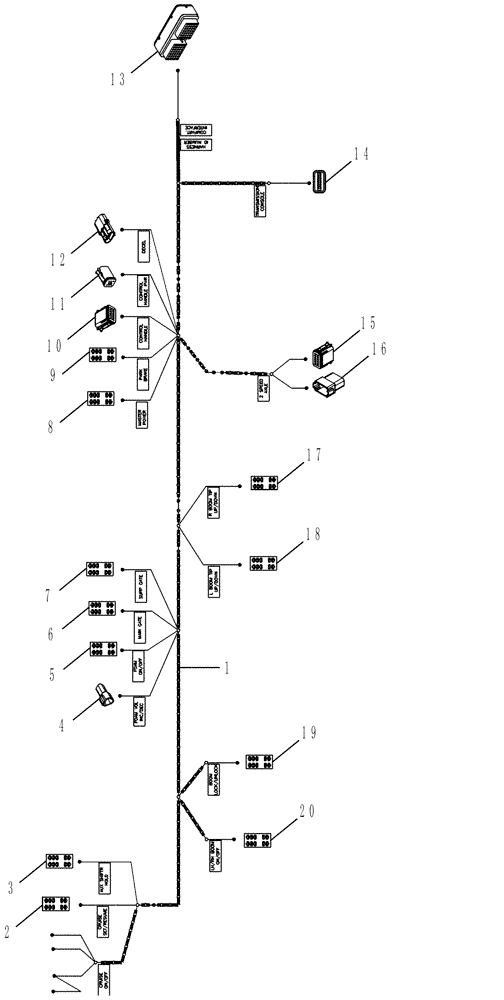

Запчасти Case IH 810 (13-017[02]) - HARNESS, RH CONSOLE, VIPER-PRO (06) - ELECTRICAL

1

87703505

WIRE HARNESS

RH Console, VIPER

1шт.

2

BN310610

ELEC CONNECTOR,Female, 10 Pin

Cruise Set/Resume, J103

1шт.

3

BN310610

ELEC CONNECTOR,Female, 10 Pin

Aux Shift Hold, J105

1шт.

4

87695723

ELEC CONNECTOR,Male , 3 Pole

Foam Volume, J113

1шт.

4a

87695625

WIRE CONNECTOR,Locking, Green

1шт.

5

BN310610

ELEC CONNECTOR,Female, 10 Pin

Foam Marker On/Off, J114

1шт.

6

BN310610

ELEC CONNECTOR,Female, 10 Pin

Main Gate Open/Close, J115

1шт.

7

BN310610

ELEC CONNECTOR,Female, 10 Pin

Supp Gate Open/Close, J116

1шт.

8

BN310610

ELEC CONNECTOR,Female, 10 Pin

Master Power, J121

1шт.

9

BN310610

ELEC CONNECTOR,Female, 10 Pin

Park Brake, J122

1шт.

10

87695592

CONTACT HOUSING,Female, 12 Pole

Control Handle I/O, P101

1шт.

10a

87695651

LOCKING TAB,Wedge Lock

1шт.

11

87694112

ELEC CONNECTOR,Female, 6 Pole

Control Handle Power, P100

1шт.

11a

87694150

LOCKING TAB,Wedge Lock

1шт.

12

87692858

ELEC CONNECTOR,Male

De- Acel, J130

1шт.

13

87707115

CONTACT HOUSING,Female, 70 Pole

Compartment Interface, P128

1шт.

13a

87271606

BOOT

1шт.

14

87271908

ELEC CONNECTOR

Transmission Shifter, P905

1шт.

14a

87271909

SEAL

SEAL, 16W ORANGE

1шт.

14b

87271910

WEDGE

TPA, RETAINER, 16F

1шт.

14c

87271911

PLUG

CAVITY PLUG, BLUE

9шт.

14d

87271912

WEDGE

CPA, MICRO PACK SERIES, R

1шт.

14e

87271913

WEDGE

STRAIN RELIEF 16F 90DEGRE

1шт.

15

87695592

CONTACT HOUSING,Female, 12 Pole

2 Speed Axle, P126

1шт.

15a

87695651

LOCKING TAB,Wedge Lock

1шт.

16

87695724

ELEC CONNECTOR,Male, 12 Pole

2 Speed Axle, J127

1шт.

16a

87698541

LOCKING TAB,Wedge Lock, 12-Pin

1шт.

17

BN310610

ELEC CONNECTOR,Female, 10 Pin

RH Tip Fold Up/Down, J119

1шт.

18

BN310610

ELEC CONNECTOR,Female, 10 Pin

LH Tip Fold Up/Down, J117

1шт.

19

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Lock/Unlock, J112

1шт.

20

BN310610

ELEC CONNECTOR,Female, 10 Pin

LH/RH Boom On/Off, J106

1шт.
