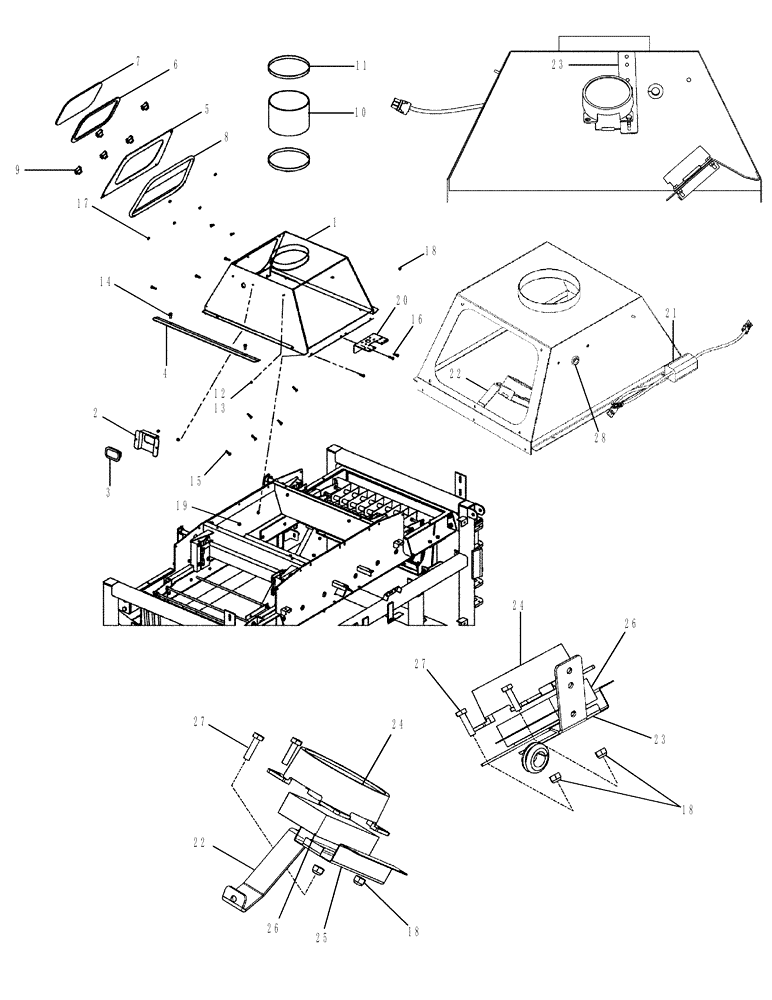

Запчасти Case IH 810 (01-011[02]) - HOPPER & HOPPER LEVEL SENSOR ASSENBLY, FLX, ASN Y9T026226 Basic Unit

1

84235791

HOPPER

1шт.

2

BN310644

MOUNTING PLATE

1шт.

3

BN310648

LIGHT

1шт.

4

BN306990

STRAP

2шт.

5

BN63535

COVER

1шт.

6

84167814

RUBBER SEAL

1шт.

7

87265980

WINDOW

1шт.

8

BN68012

SEAL

1шт.

9

BN313479

KNOB

5шт.

10

BN69181

HOSE

1шт.

11

BN85062

HOSE CLAMP

2шт.

12

435437A1

CABLE TIE,3/16" x 7 1/4"

TY RAP,EYE TY06205 3M

1шт.

13

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

14

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

15

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

12шт.

16

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

17

BN50054

NUT,1/4"-20, SS

5шт.

18

BN55359

LOCK NUT,1/4"-20, SS

15шт.

19

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

20

87266013

PLATE

1шт.

21

84121327

WIRE HARNESS

1шт.

22

87470652

MOUNT

1шт.

23

87470641

MOUNT

1шт.

24

84135845

SENSOR

2шт.

25

84125968

RETAINER

2шт.

26

84126063

ELEMENT

2шт.

27

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

4шт.

28

87742343

GROMMET,.688" x 1"

1шт.
