Запчасти Case IH 810 (13-008[02]) - HARNESS, RH COMP, 5000 (06) - ELECTRICAL

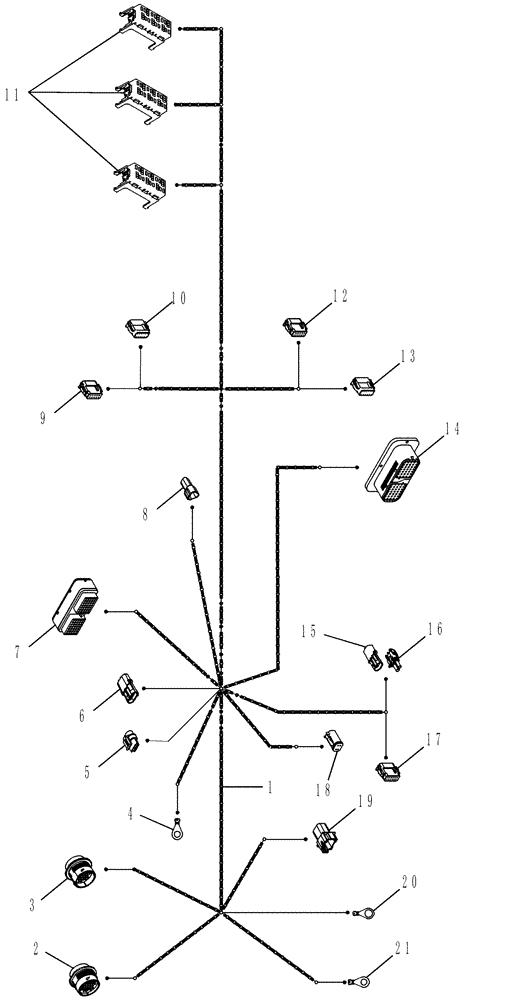

![Схема запчастей Case IH 810 - (13-008[02]) - HARNESS, RH COMP, 5000 (06) - ELECTRICAL](https://partsell.ru/storage/images/caseih/676016.png)
№
Артикул
Название
Примечание
Количество
1
87703256
WIRE HARNESS
RH Comp., SCS5000
1шт.
2
87716941
MULTIPOLE CONNECTOR,Male, 31 Pole
Hyd Harness Interface, BH4
1шт.
2a
87271930
NUT
1шт.
3
87700815
MULTIPOLE CONNECTOR,Male, 35 Pole
Prod Harness Interface, BH5
1шт.
3a
87271930
NUT
1шт.
4
84140737
TERMINAL CONNECTOR
Chassis Ground, G1
1шт.
5
87688712
WIRE CONNECTOR,Female
GPS Fuse, F200
1шт.
5a
87688863
CAP
1шт.
5b
87693742
FUSE,5A
1шт.
6
87692858
ELEC CONNECTOR,Male
GPS Interface, J200
1шт.
7
87707115
CONTACT HOUSING,Female, 70 Pole
Application Interface, P080
1шт.
8
87695723
ELEC CONNECTOR,Male , 3 Pole
Vehicle Can Buss Interface, J090
1шт.
8a
87695625
WIRE CONNECTOR,Locking, Green
1шт.
9a
87705198
WEDGE
1шт.
10
87705101
MULTIPOLE CONNECTOR,Female, 12 Pole
Prod Node, P053
1шт.
10a
87705198
WEDGE
1шт.
11
87705041
MULTIPOLE CONNECTOR,Female, 30 Pole
Relay Panel 4, 5, & 6
3шт.
11a
87704921
LOCK
6шт.
11b
86509590
RELAY
16шт.
12a
87705198
WEDGE
1шт.
13
87705101
MULTIPOLE CONNECTOR,Female, 12 Pole
Speed Node, P051
1шт.
13a
87705198
WEDGE
1шт.
14
87707114
CONTACT HOUSING,Male, 70 Pole
RH Console Interface, J128
1шт.
15
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Foam Advance Enable, J202
1шт.
16
87692855
CONTACT HOUSING,Male, 2 Cavities
Foam Advance Jumper, P202
1шт.
17a
87705198
WEDGE
1шт.
18
87694153
CONTACT HOUSING,Female, 4 Cavities
Optical Coupler, J152
1шт.
19
87700321
ELEC CONNECTOR,Female, 8 Cavities
ELEC CONNECTOR, Prod/Trany Interface, J903
1шт.
19a
87695925
1шт.
20
84140739
TERMINAL CONNECTOR,Ring, M12, 2.50 - 6.00mm
Battery Power, BH1
1шт.
21
84140737
TERMINAL CONNECTOR
Clean Ground, BH2
1шт.
Выбрано товаров: 35
