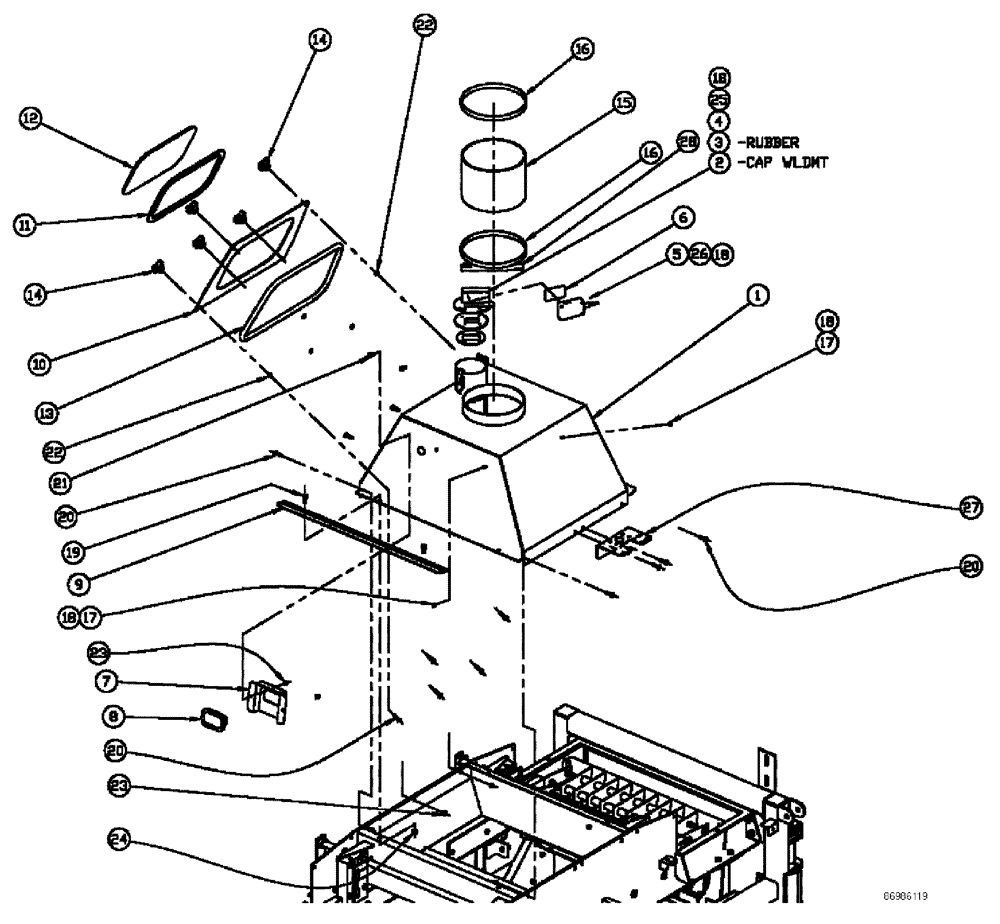

Запчасти Case IH 810 (01-011[01]) - HOPPER GROUP, FLEX, 60’ & 70’, BSN Y9T026226 Basic Unit

1

86986109

HOPPER

1шт.

2

86986111

CAP

Cap, RH Mount

1шт.

3

86986115

RUBBER SLEEVE

RUBBER

1шт.

4

86986114

PLATE

RETAINER

1шт.

5

BN322583

SENSOR

ASSEMBLY

1шт.

See Fig. 13-024

1шт.

6

BN321167

GASKET

Sensor Cushion

1шт.

7

BN310644

MOUNTING PLATE

BIN LIGHTS

1шт.

8

BN310648

LIGHT

GROUP

1шт.

9

BN306990

STRAP

COVER HOLDDOWN

2шт.

10

BN63535

COVER

HOPPER ACCESS

1шт.

11

84167814

RUBBER SEAL

Conveyor Access

1шт.

Not Shown, Behind Side Access Panel

1шт.

12

87265980

WINDOW

Hopper 12" x 8"

1шт.

13

BN68012

SEAL

CONV ACCESS

1шт.

14

BN313479

KNOB

1/4-20 SS INSERT

5шт.

15

BN69181

HOSE

8" ID X 6.00, FLEXIBLE

1шт.

16

BN85062

HOSE CLAMP

8"

2шт.

17

435437A1

CABLE TIE,3/16" x 7 1/4"

RAP, "EYE TY" 06205 3M

3шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

20

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

12шт.

21

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

22

BN50054

NUT,1/4"-20, SS

5шт.

23

BN55359

LOCK NUT,1/4"-20, SS

11шт.

24

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

25

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

4шт.

26

BN316803

SCREW,#10 - 24 x 1 1/2", SST

MACH #10-24 X 1.5 SS

2шт.

27

87266013

PLATE

Solenoid Valve Mount

1шт.

28

87675156

MOUNT

Cable

1шт.
