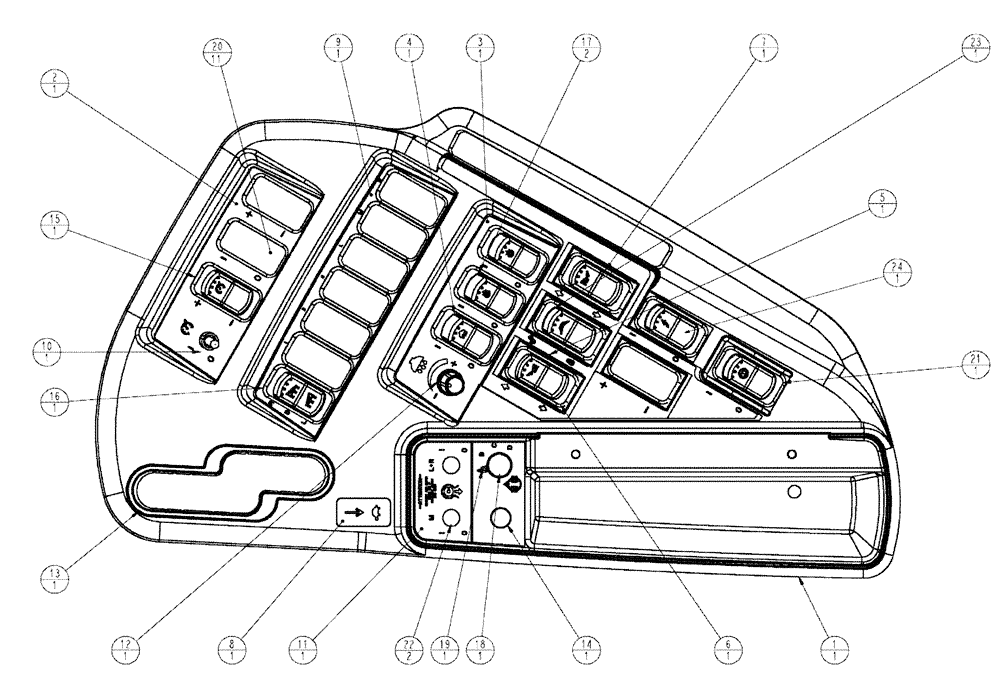

Запчасти Case IH 810 (13-002) - FLEX-AIR® CONTROL PANEL-VIPER, VIPER-PRO (06) - ELECTRICAL

1

377999A1

CONSOLE

console control

1шт.

2

BN324088

DECAL

FAN CONTROL

1шт.

3

BN324090

FOAM CONTROL

1шт.

4

BN321912

SWITCH

assembly, foam activate

1шт.

5

BN324091

DECAL

BOOM POSITION

1шт.

6

BN321913

SWITCH

ASSY, BOOM FOLD LH

1шт.

7

BN321915

SWITCH

Boom Fold RH

1шт.

8

BN324087

DECAL

DECAL

1шт.

9

BN324089

DECAL

PRODUCT CONTROL

1шт.

10

BN24129

SWITCH

On-None-On Dpdt

1шт.

11

BN324092

DECAL

GATE CONTROL

1шт.

12

118780A1

KNOB

Console Control

1шт.

13

128833A2

GUIDE

Propulsion Control Lever

1шт.

14

282056A1

PLUG

double d

1шт.

15

BN324151

SWITCH

CRUISE CNTRL, SET

1шт.

16

BN324396

SWITCH

BOOM SECTION

1шт.

17

BN324405

SWITCH

BIN GATE

2шт.

18

342794A1

KNOB

switch, rotary

1шт.

19

86986401

SWITCH ASSY

Rotary, 4 Position

1шт.

20

BN322626

PLUG

Panel, NGR

11шт.

21

BN322904

SWITCH

rocker, park brake

1шт.

21a

87388415

SWITCH

NRG, on-none-off

1шт.

Associated Part of Park Brake Switch, P/N BN322904

1шт.

22

86625127

PLUG,Dome, .375" hole, Nylon

2шт.

23

344065A1

SWITCH

assembly, boom lock

1шт.

24

BN325000

SWITCH

rocker, main power

1шт.

24a

87388415

SWITCH

NRG, on-none-off

1шт.

Associated Part of Switch Assy Main Power, P/N BN325000

1шт.

25

BN323495

ADAPTER

Reverse

1шт.

Not Shown

1шт.

26

BN325825

SPACER

Switch

3шт.

Not Shown

1шт.

27

BN322908

SWITCH

NGR

1шт.

Not Shown

1шт.

28

87271259

DECAL

FUSE 438A, VIPER

1шт.

Not Shown

1шт.

29

84150856

DECAL

FUSE/RELAY, VIPER-PRO

1шт.

Not Shown

1шт.

30

121412A1

FUSE,10A, Mini, Red

2шт.

Not Shown

1шт.

31

121413A1

FUSE,15A, Mini, Blue

2шт.

Not Shown

1шт.
