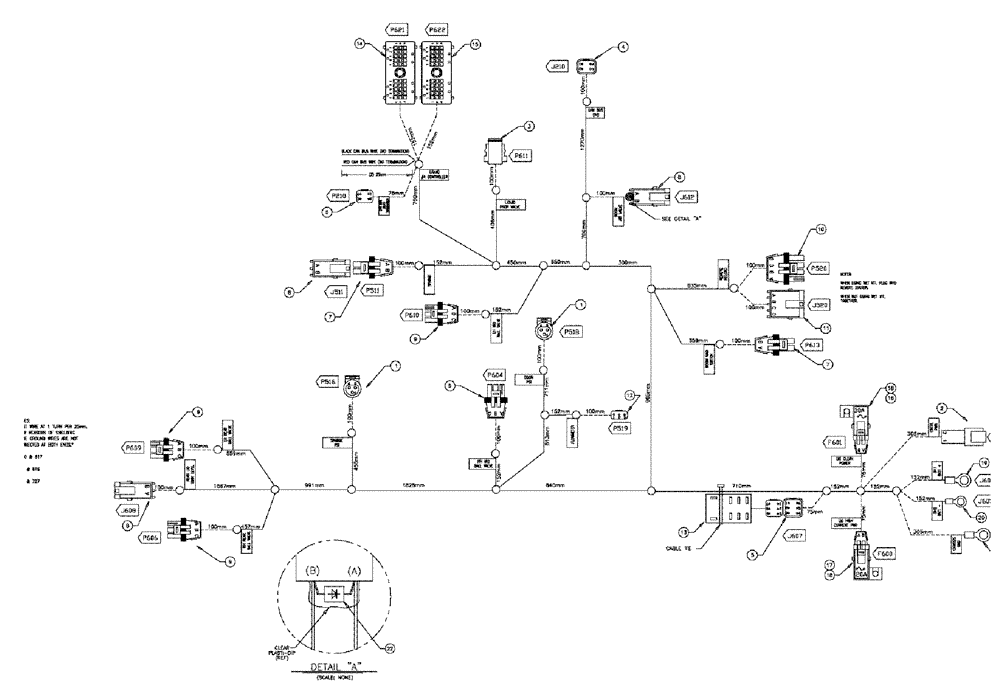

Запчасти Case IH 810 (10-036) - HARNESS, LIQUID KIT Wet Kit

0

87370732

HARNESS

liquid kit

1шт.

1

198456A1

ELEC CONNECTOR,Female

ES-A7380

2шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

cab plastic rcp 2C

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 cavity

1шт.

4

9861350

ELEC CONNECTOR

Deutsch DT4

1шт.

5

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 pin type LY

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Deutsch 4 cavity plug DT series

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

plastic 2c plug

2шт.

8

245483C1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

3шт.

9

245484C1

ELEC CONNECTOR,3 Pin

plastic 3c plug

4шт.

10

245486C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

1шт.

11

245487C1

ELEC CONNECTOR,Male, 4 Pin

4 Way Recepacle

1шт.

12

276424A1

ELEC CONNECTOR,Female, 3 Pin

cab plastic plug 3c

1шт.

13

87265264

RELAY

Power, Boom Shut-Off

1шт.

14

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30 Position A-K Plug

1шт.

15

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

Connector, 30 Position L-Y Plug

1шт.

16

A149800

FUSE,10 Amp

10 Amp, Red

1шт.

17

A149802

FUSE

20 Amp

1шт.

18

BN303935

Connector Assembly, Y, Fuseholder

2шт.

19

NS

NOT SERVICED

Terminal, Ring M16 Stud

1шт.

20

NS

NOT SERVICED

Terminal, Ring M10 Stud

1шт.

21

NS

NOT SERVICED

Terminal, Ring M12 Stud

1шт.

22

NS

NOT SERVICED

Diode, 3 Amp 600 v PRV

1шт.

23

NS

NOT SERVICED

Ty-Rap

1шт.
