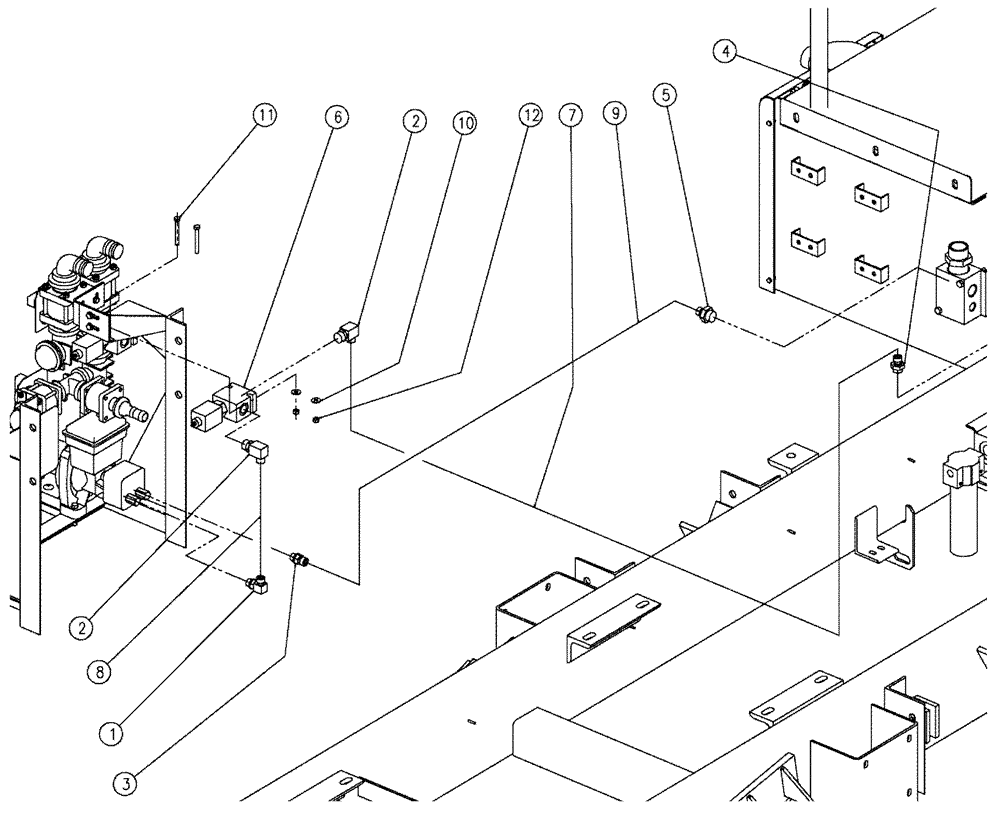

Запчасти Case IH 810 (10-027) - HYDRAULIC GROUP, WET KIT, 60 & 70 Wet Kit

1

BN302558

ELBOW

8 MOR 8MB X 90

1шт.

2

BN302560

FITTING

8MOR 12MB X 90

2шт.

4

BN302651

FITTING

8MOR 10MB

2шт.

5

BN302652

FITTING

8MOR 12MB

1шт.

6

87266236

VALVE

product, PWM Flex

1шт.

6a

BN314444

NUT

1шт.

Service Parts for Ref. 6

1шт.

6b

BN314445

RIVET

1шт.

Service Parts for Ref. 6

1шт.

6c

BN314446

COIL

HOUSING

2шт.

Service Parts for Ref. 6

1шт.

6d

BN314447

COIL

1шт.

Service Parts for Ref. 6

1шт.

6e

BN314448

VALVE BODY

1шт.

Service Parts for Ref. 6

1шт.

6f

BN302907

HYDRAULIC VALVE

Proportional Assembly

1шт.

Service Parts for Ref. 6

1шт.

7

BN311741

HOSE

08 X 62

1шт.

8

BN311742

HOSE,16.00"

1шт.

9

BN311743

HOSE

08 X 97

1шт.

10

BN50142

WASHER,5/16", Stainless Steel

2шт.

11

BN52324

BOLT

5/16-18 X 2.75, HH, SS

2шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.
