Запчасти Case IH 810 (10-025) - SPARGE GROUP, FLEX LIQUID, 60 & 70 Wet Kit

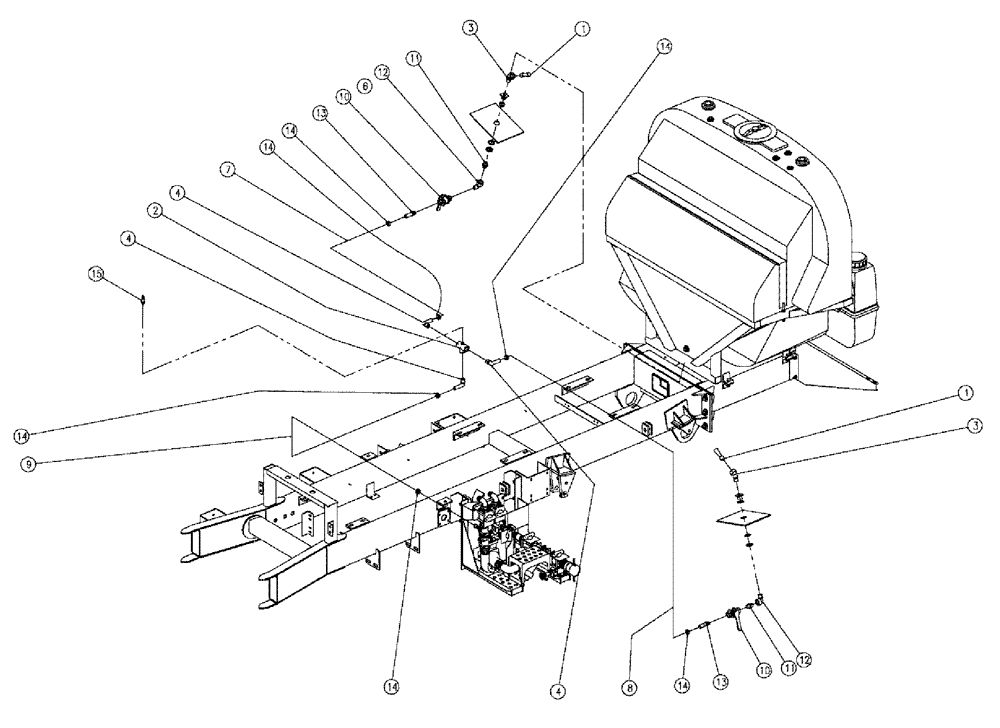

Схема запчастей Case IH 810 - (10-025) - SPARGE GROUP, FLEX LIQUID, 60 & 70 Wet Kit
14
7
1
12
14
14
15
11
3
10
2
14
4
13
8
6
4
3
11
13
9
12
1
4
14
14
10

Артикул

Название

Примечание

Количество

1

BN310059

NOZZLE

SPARGE, 9/32

2шт.

2

BN310060

TEE

1" POLY, W/1/4" PORT

1шт.

3

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

ELBOW, 45 STREET, 3/4", POLY

2шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

7

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

8

BN53756

HOSE,42.00"

1шт.

9

BN53820

EPDM 1" ID X 92"

1шт.

10

BN324588

VALVE

Ball 3/4" SU Poly

2шт.

11

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

12

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

13

BN73569

FITTING

HOSE, BARB, 3/4 NPT X 1

2шт.

14

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

15

87266753

SENSOR

pressure xducer

1шт.

Выбрано товаров: 13
