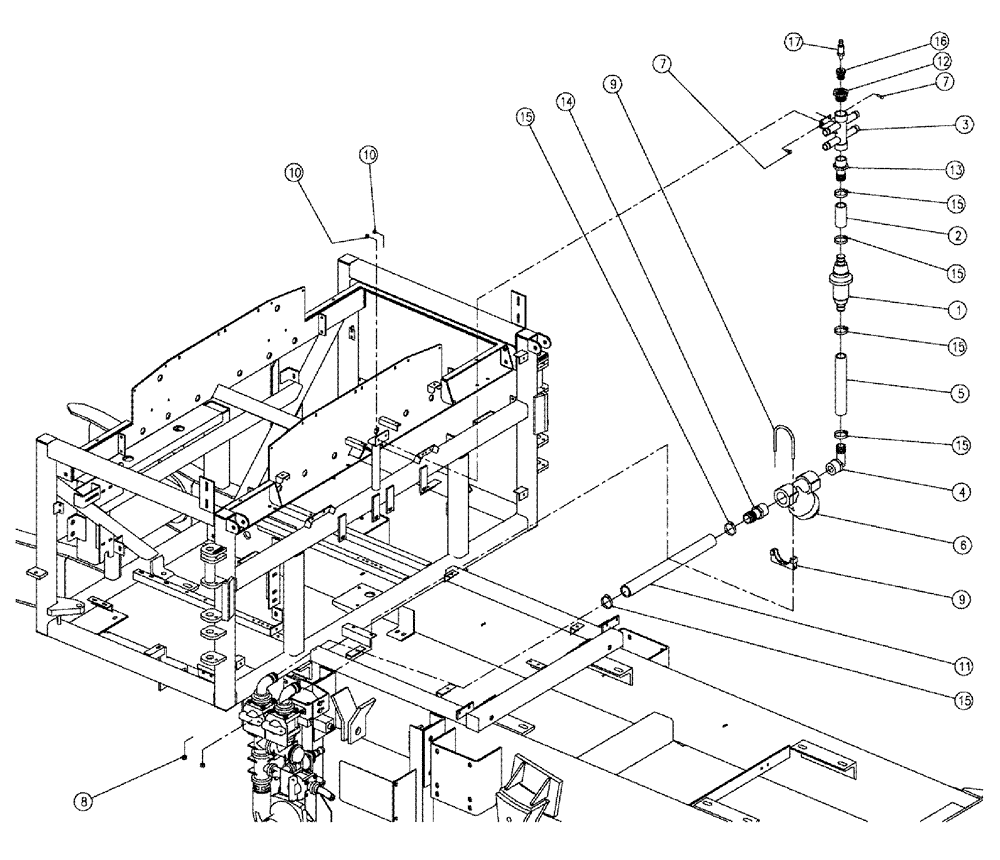

Запчасти Case IH 810 (10-024) - MANIFOLD GROUP, FLEX LIQUID, 60’ & 70’ Wet Kit

1

87377607

HYDROMETER

Flow Group, With Deutsch Connector, Start Serial: 20614

1шт.

See Fig. 10-037

1шт.

1a

87265850

HYDROMETER

Raven RFM-55, With Deutsch, Start Serial: 20001

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

1b

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

BN24645

HOSE

1-1/4 EPDM X 3-1/2

1шт.

3

BN304699

MANIFOLD

FLEX LIQUID

1шт.

4

BN308040

FITTING,1-1/2" Male Thread x 1-1/4" 90 Degree Hose Barb

1.5 NPT, 1.25 HB, 90º

1шт.

5

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

Cut 10" from bulk hose

1шт.

6

BN309963

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

LINE, 1.5", 50 MESH

1шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

9

BN53399

PIPE CLAMP

3" MUFFLER

1шт.

10

BN55359

LOCK NUT,1/4"-20, SS

2шт.

11

BN67239

HOSE

1.50 X 20.50 EPDM

1шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

13

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

14

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

15

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

6шт.

16

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

17

87266753

SENSOR

pressure xducer

1шт.
