Запчасти Case IH 810 (10-023) - SIGHT GAUGE GROUP, 60’ & 70’ Wet Kit

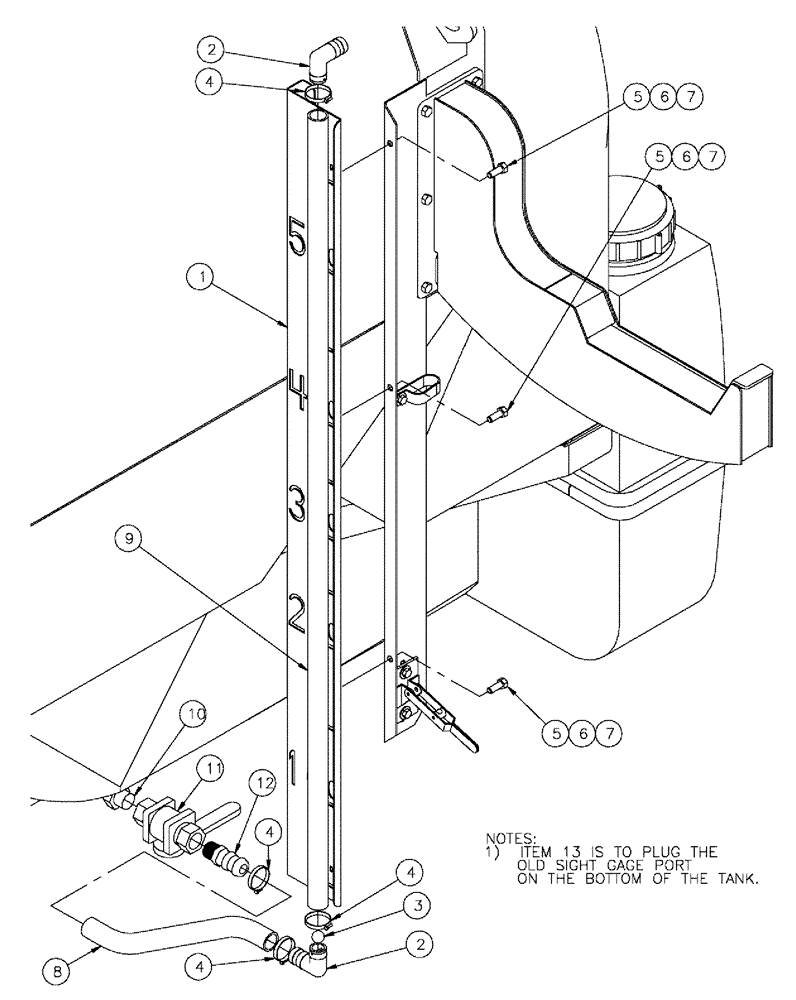

Схема запчастей Case IH 810 - (10-023) - SIGHT GAUGE GROUP, 60’ & 70’ Wet Kit
9
7
7
6
4
6
5
6
3
12
11
2
5
2
1
10
5
8
4
4
7
4

Артикул

Название

Примечание

Количество

1

343745A1

PLATE

sight gauge, Flex-Air®

1шт.

2

342685A1

END FITTING

hosebarb, 1" 90 with pin

2шт.

3

BN326104

BALL

3/4" POLY (FLOATNG)

1шт.

4

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

5

BN50254

BOLT,3/8"-16 x 1", Stainless

3шт.

6

BN50146

WASHER,3/8", Stainless

3шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

8

BN54257

HOSE, 1.0" ID X 30.00" VINYL

1шт.

9

343746A1

HOSE

1" x 57" Clear

1шт.

10

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

11

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

12

BN73569

FITTING

HOSE, BARB, 3/4 NPT X 1 HOSE

1шт.

13

BN73553

PLUG

3/4" NPT, Poly

1шт.

Выбрано товаров: 13
