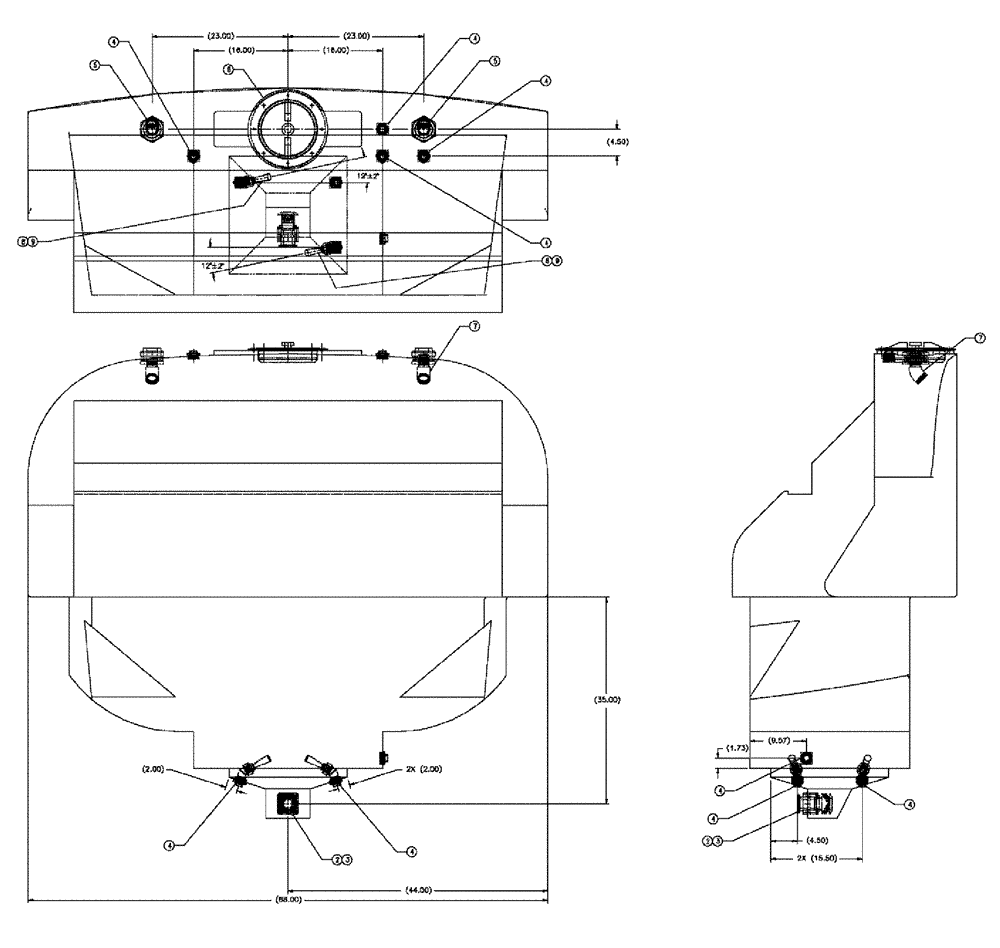

Запчасти Case IH 810 (10-021) - TANK GROUP, 500 GALLON, FLEX-GRAY Wet Kit

1

BN301612

TANK, 500, REWORK 301611

1шт.

2

BN309799

COVER

VENT, ANTI-VORTEX, 2"

1шт.

3

BN309800

FLANGE

BOTTOM DRAIN BOLT

1шт.

4

BN73563

BULKHEAD

FITTING 3/4"

8шт.

5

BN73733

FITTING

1 1/2" Bulkhead

2шт.

6

BN98288

COVER

10", For 500-750 Tank

1шт.

7

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

2шт.

8

BN310059

NOZZLE

SPARGE 9/32

2шт.

9

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

45 STREET, 3/4", POLY

2шт.
