Запчасти Case IH 810 (10-019) - PUMP STATION GROUP, VALVES, 60’ & 70’ Wet Kit

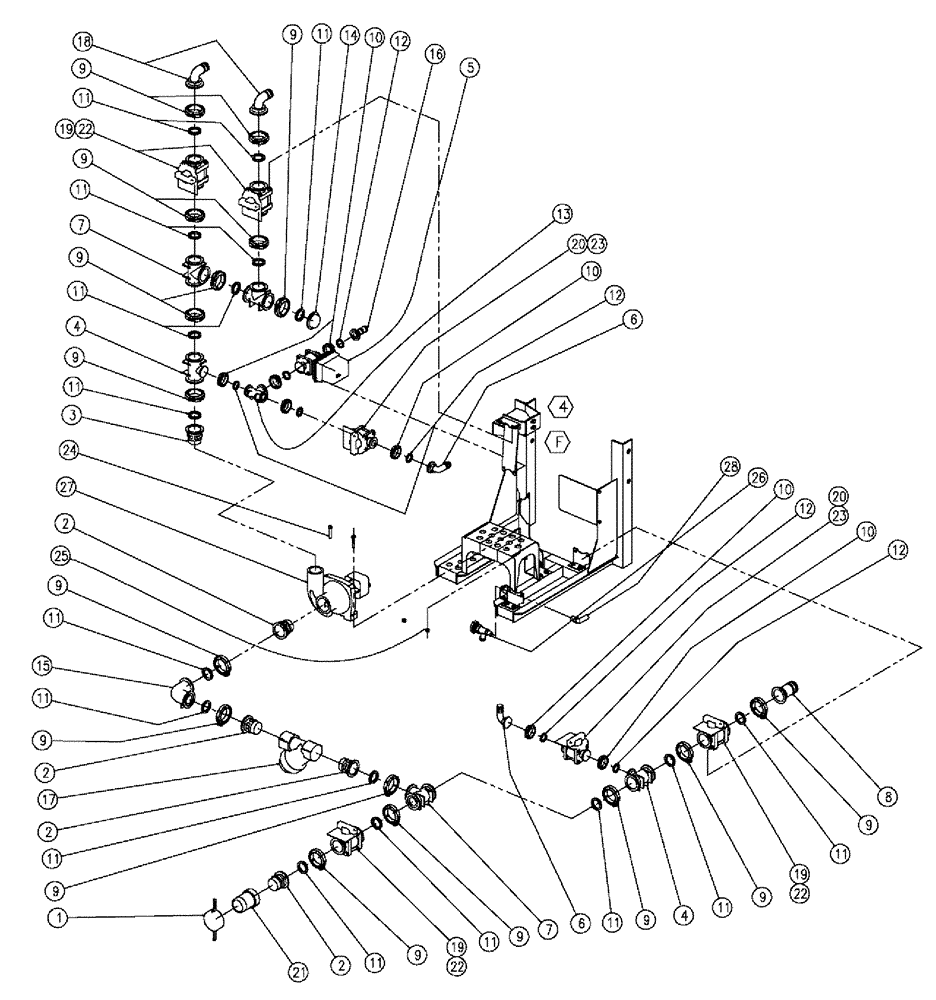

Схема запчастей Case IH 810 - (10-019) - PUMP STATION GROUP, VALVES, 60’ & 70’ Wet Kit
2
14
11
9
12
11
19
6
17
18
9
11
9
11
11
2
24
11
22
26
11
10
9
12
9
19
9
12
16
9
1
20
8
11
4
21
13
11
4
10
9
5
10
3
2
9
23
11
11
2
20
19
23
28
27
6
9
9
11
9
7
22
15
11
25
7
22
12
9
10

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

4шт.

3

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 FL X 1 FL

2шт.

5

BN303193

VALVE,STD Port Regulating 1”, 4 Second, 2 Wire ARBBCWDG

ELECTRIC, 2 WAY 1"

1шт.

6

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

2шт.

7

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

3шт.

8

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

9

BN303199

CLAMP,2" Flange

2" Standard Flange

16шт.

10

BN303203

CLAMP,1" Flange

1 FL

7шт.

11

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

16шт.

12

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

7шт.

13

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

14

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

15

BN304318

COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly

2" flange, 90

1шт.

16

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" Flange X 1" Barb

1шт.

17

BN304320

FILTER STRAINER,2" x 2" Y Strainer

LINE, 2", 12 MESH

1шт.

18

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

2шт.

19

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2" FL, W/T HNDL

4шт.

20

BN304329

VALVE,1"FP Valve w/C-Flng & T Handle

BALL, 1" FL, W/T-HNDL

2шт.

21

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

22

BN320997

BRACKET

Decal Mount (SS)

4шт.

23

BN320998

PLATE

Decal Mount (SS)

2шт.

24

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

2шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

27

BN68766

PUMP

HYPRO, 2" INLET HM 1, SEE FIG. 07-008

1шт.

28

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

Выбрано товаров: 28
