Запчасти Case IH 810 (10-018) - PUMP STATION GROUP BRACKET, 60’ & 70’ Wet Kit

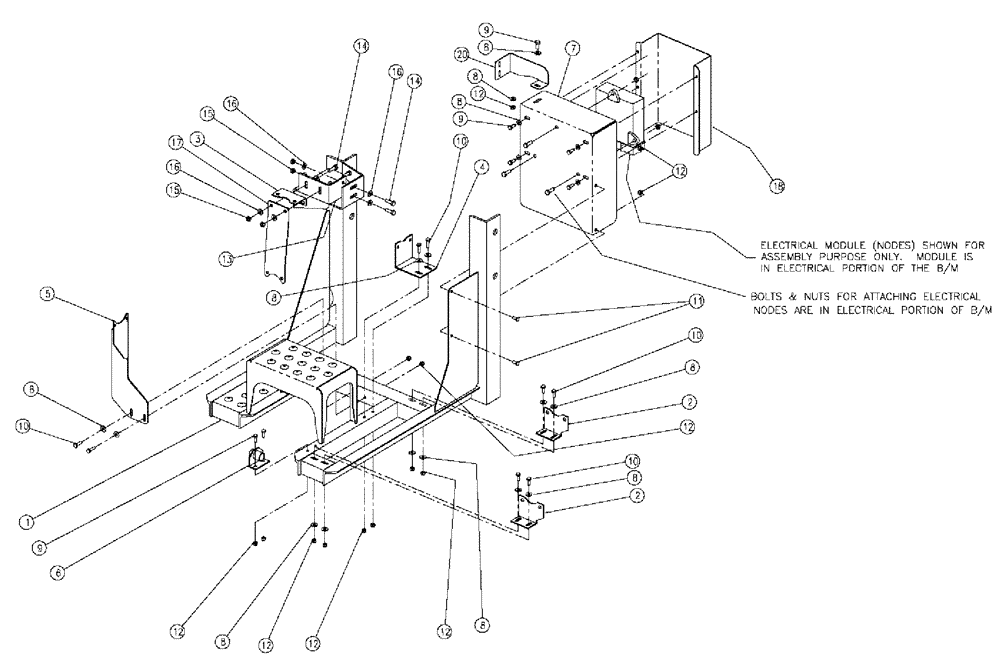

Схема запчастей Case IH 810 - (10-018) - PUMP STATION GROUP BRACKET, 60’ & 70’ Wet Kit
14
8
12
8
16
8
8
13
8
6
12
5
2
10
15
16
12
8
9
12
8
9
8
10
14
1
9
12
15
4
8
3
16
7
10
10
17
20
12
12
2
18
11

Артикул

Название

Примечание

Количество

1

BN319418

BRACKET, SUPPORTING

PUMP STATION, W/M

1шт.

2

BN304424

BRACKET

2" VALVE, LOWER

2шт.

3

BN319416

MOUNTING PLATE

BALL VALVE

1шт.

4

BN304426

BRACKET

1" VALVE, LOWER

1шт.

5

87267528

PLATE

1" Valve Mount

1шт.

6

BN304465

BRACKET

W/M, WATER VALVE

1шт.

7

87270069

MOUNT

MOUNT, NODE, Start Serial: 7331

1шт.

7a

87268844

PLATE

Mounting, Decal/Node

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

8

BN50138

WASHER,1/4", SS

18шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

11шт.

10

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

11

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

12

BN55359

LOCK NUT,1/4"-20, SS

17шт.

13

BN319417

MOUNT

MOUNT, BALL VALVE MOUNT

1шт.

14

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

15

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

16

BN50142

WASHER,5/16", Stainless Steel

8шт.

17

343165A1

PLATE

1" VALVE MOUNT

1шт.

18

87268846

COVER

Electronic Node

1шт.

19

BN50681

BOLT,Hex, 1/4" - 20 x 1-1/2", SST

1/4-20 X 1.5, HH, SS

4шт.

20

87270070

BRACKET

BRACE, NODE MOUNT, Start Serial: 7331

1шт.

Выбрано товаров: 22
