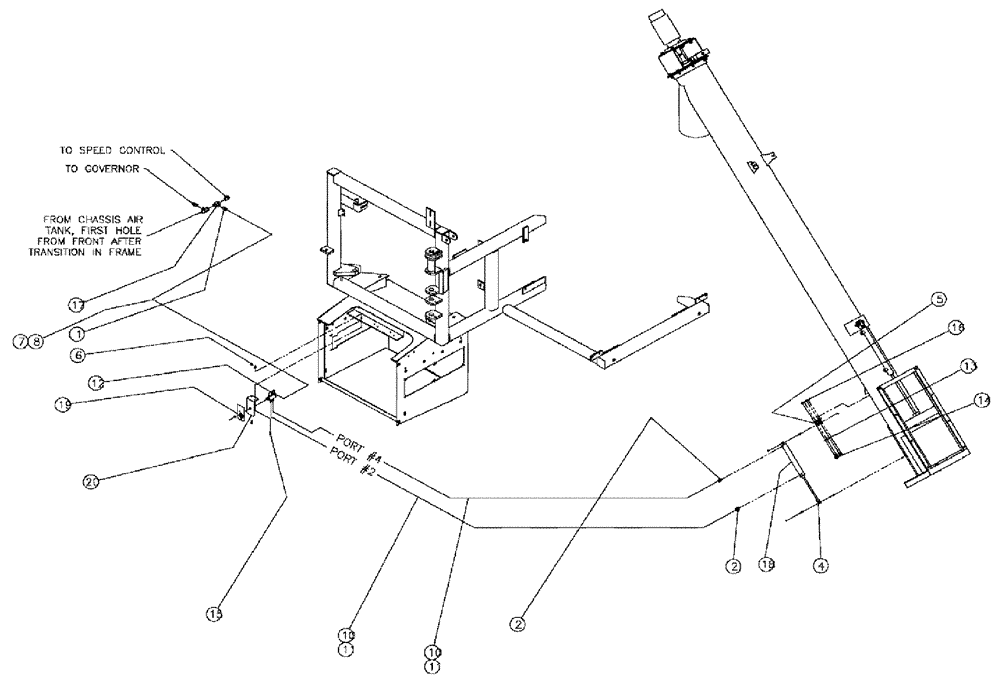

Запчасти Case IH 810 (01-008) - 8" AUGER PNEUMATIC GROUP Basic Unit

1

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

4

BN300254

KIT

Clevis, .31 Rod

1шт.

5

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

1шт.

6

353308

NUT,M6 x 1.0, Cl 8

2шт.

7

BN303250

AIR HOSE,50.00"

1/4", Black

1шт.

8

BN303252

LOOM

PLASTIC, 1/4" X 50"

1шт.

10

BN303336

AIR HOSE,88.00"

1/4", Black

2шт.

11

BN303337

LOOM

PLASTIC, 1/4" X 88"

2шт.

12

NS

NOT SERVICED

Valve, Air, 4-Way, Start Serial: 6700

1шт.

See Fig. 01-010

1шт.

12a

BN304833

SOLENOID VALVE

AIR, DOUBLE

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

See Fig. 01-009

1шт.

12b

84269276

SEAL

Pressure, Pilot Valve

1шт.

13

BN50138

WASHER,1/4", SS

4шт.

14

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

16

BN55359

LOCK NUT,1/4"-20, SS

4шт.

17

BN55386

TEE

1/4 nptf street steel

1шт.

18

BN68383

CYLINDER,Double Acting, 6.35mm Rod, 127mm Stroke

1.06 X 6, AIR

1шт.

19

87270335

DECAL

MAIN DOOR CONTROL

1шт.

20

87270334

MOUNTING PLATE

AIR VALVE, Start Serial: 6700

1шт.
