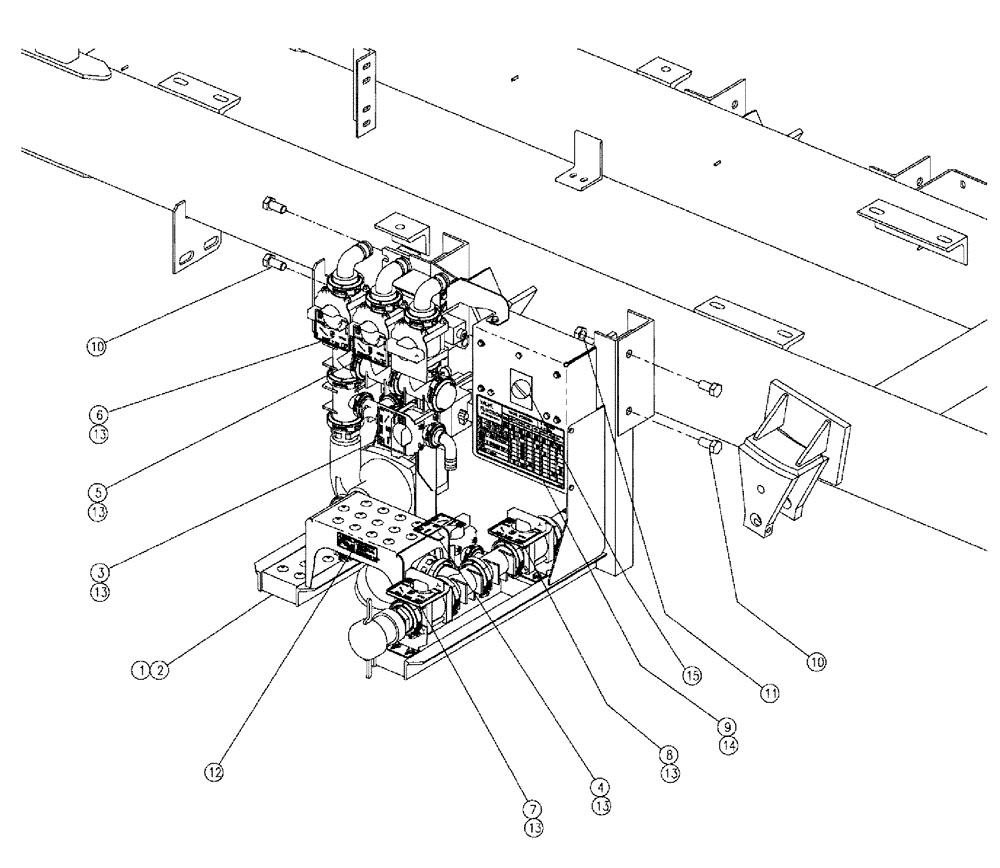

Запчасти Case IH 810 (10-017) - PUMP STATION GROUP, 60’ & 70’ Wet Kit

1

NS

NOT SERVICED

Pump Station, Bracket, 438A

1шт.

See Fig. 10-018

1шт.

2

NS

NOT SERVICED

Pump Station, Valve Group

1шт.

3

BN306582

DECAL

TANK, RINSE

1шт.

4

BN306583

DECAL

TANK, RINSE

1шт.

5

BN306585

DECAL

PRESSURE FILL

1шт.

6

BN310013

DECAL

BOOM FLOW

1шт.

7

BN310017

DECAL

TANK FILL, OUTSIDE

1шт.

8

BN310018

DECAL

TANK FILL, INSIDE

1шт.

9

BN310019

DECAL

VALVE, CONTROL

1шт.

10

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

11

280375

NUT,3/4"-10, GC

4шт.

12

BN67243

DECAL

Strainer Pressure

1шт.

13

342511A1

DECAL

overlay, valve function

6шт.

14

342512A1

DECAL

overlay, valve control

1шт.

15

87271146

DECAL

DO NOT DRINK

1шт.
