Запчасти Case IH 810 (10-014) - SPRAYBAR GROUP, EXTEND, RH, 70’ Wet Kit

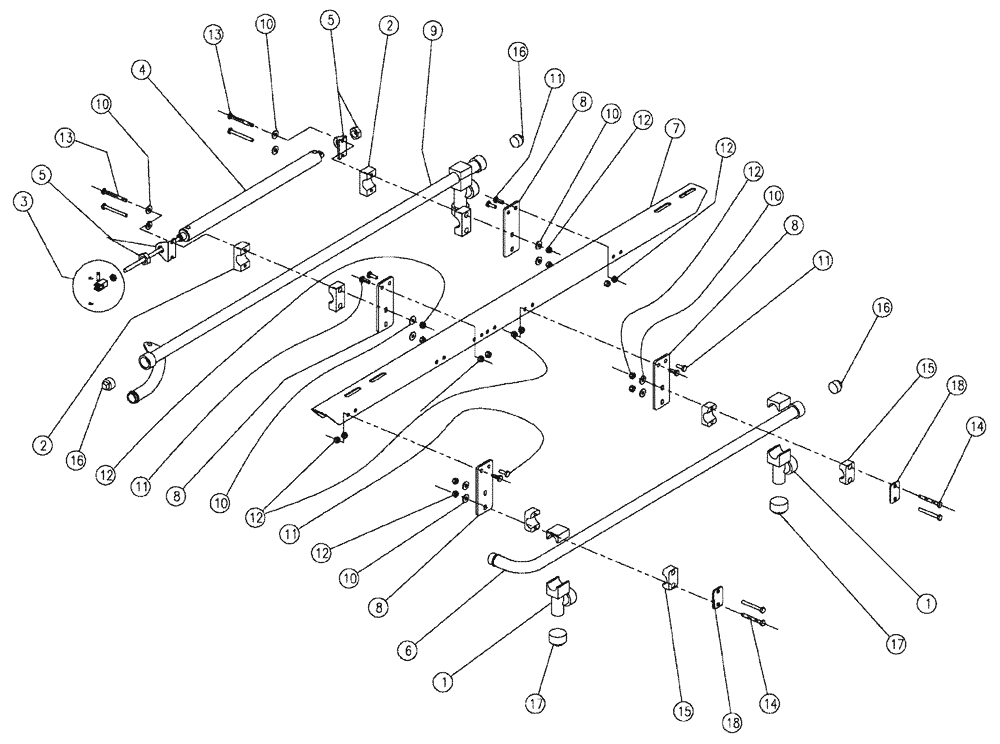

Схема запчастей Case IH 810 - (10-014) - SPRAYBAR GROUP, EXTEND, RH, 70’ Wet Kit
7
16
6
8
14
13
10
11
15
11
10
11
8
12
16
12
10
1
3
12
10
12
2
5
10
10
5
17
8
8
16
14
11
1
4
15
12
18
17
9
12
13
18
2

Артикул

Название

Примечание

Количество

1

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

3шт.

2

BN25984

CLAMP

Single (3/4" Pipe)

2шт.

3

BN300254

KIT

Clevis, .31 Rod

1шт.

4

BN300256

CYLINDER,Double Acting, 7.92mm Rod, 381mm Stroke

1.06 x 15, Air

1шт.

5

BN300257

REPAIR KIT

Foot Bracket, 1.06 Cylinder

2шт.

6

BN300300

BAR

Spray, Midship, RH

1шт.

7

BN315392

SUPPORT

SPRAY BAR, REAR, 70

1шт.

8

BN301631

BRACKET

Spraybar, Rear

4шт.

9

BN301632

BAR

Spray, Extend, RH

1шт.

10

BN50138

WASHER,1/4", SS

12шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

12

BN55359

LOCK NUT,1/4"-20, SS

16шт.

13

BN55371

BOLT

1/4-20 X 2.5, HH, SS

4шт.

14

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

4шт.

15

BN65324

CLAMP

1" OD, Poly

2шт.

16

BN73553

PLUG

3/4" NPT, Poly

3шт.

17

BN74619

CAP

W/GASKET TEE, JET BLK

3шт.

18

BN311249

PLATE

TOP, SINGLE, SIZE 3

2шт.

Выбрано товаров: 18
