Запчасти Case IH 810 (10-004) - BOOM PLUMBING, 2.5", LH, OUTER, 70 Wet Kit

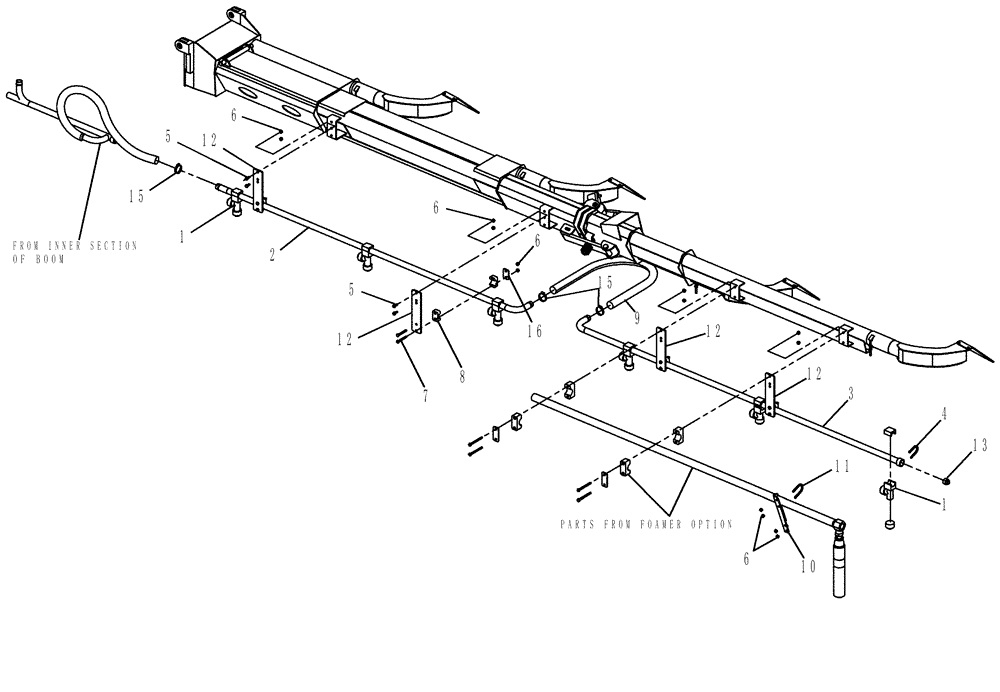

Схема запчастей Case IH 810 - (10-004) - BOOM PLUMBING, 2.5", LH, OUTER, 70 Wet Kit
10
12
1
of boom
11
7
1
3
6
2
6
9
from inner section
12
6
12
16
4
15
8
13
5
15
12
6
parts from foamer option
5

Артикул

Название

Примечание

Количество

1

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

6шт.

2

BN315387

BAR

SPRAY W/M, MID, L.H., 70

1шт.

3

BN315388

BAR

SPRAY W/M, OUTER, L.H.,70

1шт.

3

BN73553

PLUG

3/4" NPT, Poly

1шт.

4

BN34458

U-BOLT

1/4" x 1.12 ID CR RD

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN55359

LOCK NUT,1/4"-20, SS

16шт.

7

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

8

BN65324

CLAMP

1" OD, Poly

4шт.

9

BN66858

HOSE

1" EPDM X 31.00"

1шт.

10

BN67983

SUPPORT

Outer Spraybar

1шт.

11

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

1шт.

12

BN68981

BRACKET

Spraybar

4шт.

13

BN73553

PLUG

3/4" NPT, Poly

1шт.

15

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

16

BN311249

PLATE

TOP, SINGLE, SIZE 3

4шт.

Выбрано товаров: 16
