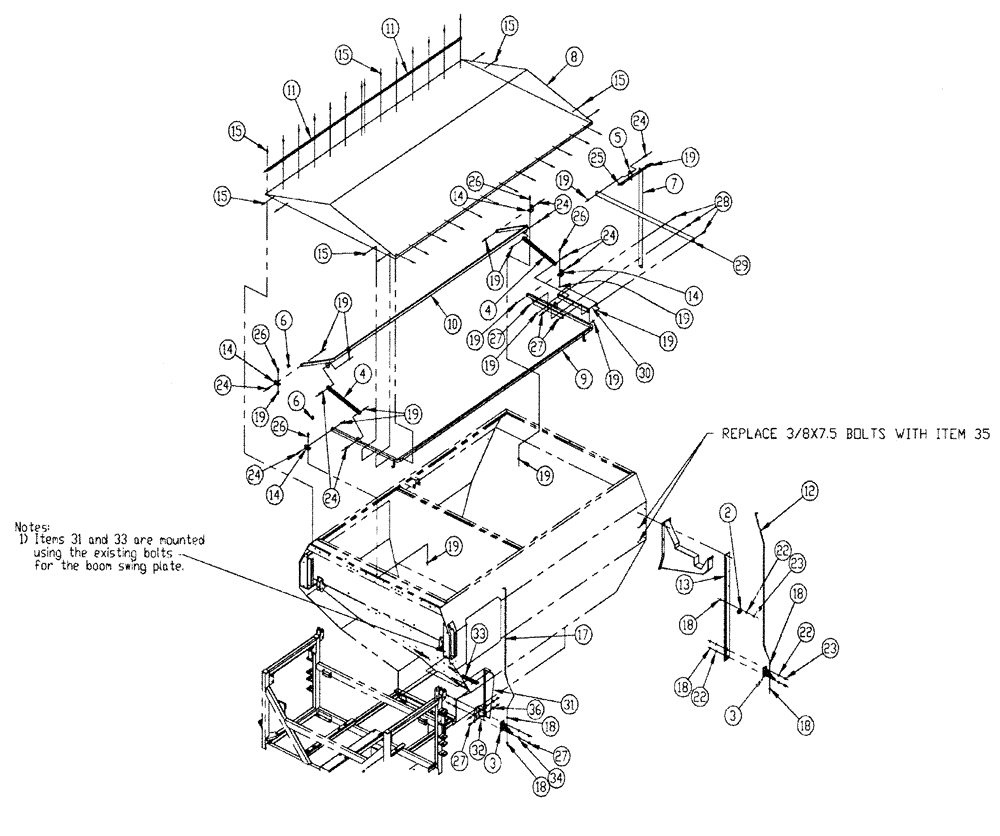

Запчасти Case IH 810 (14-001) - FLIPTOP GROUP, MID Tarps Decals/ Miscellaneous

2

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

3

BN05777

CLAMP

Lock Mech-Flip Top

2шт.

4

BN15214

LINK

Fliptop

2шт.

5

BN32816

BRACKET

10 GA 304 2. X 3.75

1шт.

6

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

7

BN32836

STRAP

PULL, M8 M15 FLIP TOP

1шт.

8

BN311670

TARPULIN

FLIP TOP, GRAY

1шт.

9

BN35903

FRAME

W/M, OUTSIDE FLIP TOP

1шт.

10

BN35906

FRAME

W/M, INSIDE FLIP TOP

1шт.

11

BN35908

SUPPORT

TARP, OUTSIDE

2шт.

12

BN67118

ROD

FLIP TOP, SIDE

1шт.

13

BN66075

SUPPORT

FLIP TOP ROD, SIDE

1шт.

14

BN324644

PIVOT

WLDMT, FLP TOP (438)

4шт.

15

BN54127

RIVET

NYLON DRIVE, NOT BLAC

34шт.

17

BN67117

ROD

LOCK, 38" FORMED

1шт.

18

BN55361

NUT,5/16"-18, Nylon, Stainless

7шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

25шт.

22

BN50142

WASHER,5/16", Stainless Steel

5шт.

23

BN50476

BOLT,5/16"-18 x 0.75", Stainless

3шт.

24

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

9шт.

25

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

27

BN50254

BOLT,3/8"-16 x 1", Stainless

7шт.

28

BN50263

BOLT,3/8"-16 X 1-3/4", Stainless Steel

3шт.

29

BN311719

HANDLE

FLIP TOP

1шт.

30

BN311720

SPACER

FLIP TOP HANDLE

1шт.

31

BN319812

SUPPORT

FLIP TOP ROD FRT

1шт.

32

BN319813

BRACKET

LOCK, FLEX-AIR®

1шт.

33

BN319824

GUIDE

ROD, FEX AIR

1шт.

34

BN50146

WASHER,3/8", Stainless

8шт.

35

87312740

BOLT

3/8-16 X 8 G5 DOR

2шт.
