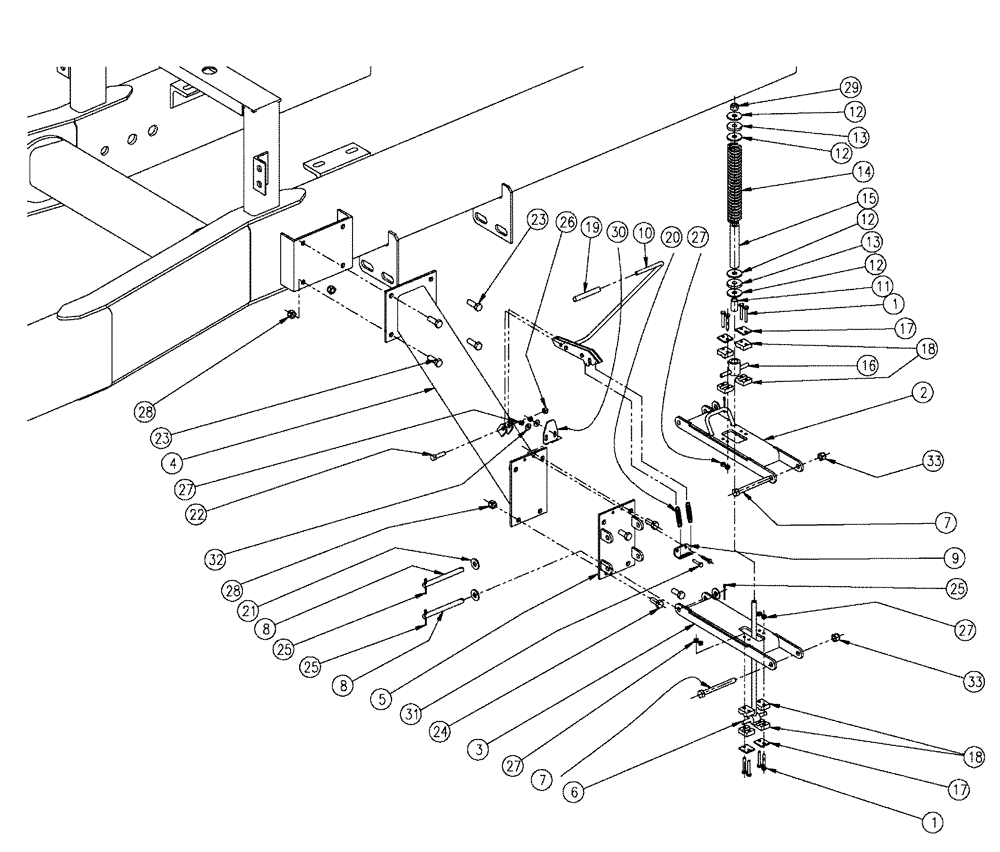

Запчасти Case IH 810 (11-002) - EDUCTOR MOUNT GROUP Reload Control & Chemical Eductor

1

BN300395

BOLT,1/4"-20 x 1-3/4", Stainless Steel

8шт.

2

BN313552

LINK

Inductor, Upper

1шт.

3

BN313553

LINK

Inductor, Lower

1шт.

4

BN312964

BRACKET, SUPPORTING

W/M, EDUCTOR

1шт.

5

BN312965

MOUNTING PLATE

W/M, EDUCTOR LINKS

1шт.

6

BN311873

PIVOT

ROD W/M, SPRING

1шт.

7

BN301360

BOLT

Hex, M12-1.75 x 120, SS

2шт.

8

BN311877

PIN

LOWER PIVOT

2шт.

9

BN312966

BRACKET

LATCH SPRING

1шт.

10

BN313667

LATCH

W/M, CHEM TANK

1шт.

11

BN311880

PIVOT

BUSHING, SPRING

1шт.

12

BN311881

WASHER

1.63 X 10 GA

4шт.

13

BN311882

WASHER

1.63 X .25 RUBBER

2шт.

14

BN311883

SPRING

1.55 X 9.75 X .207, SS

1шт.

15

BN311884

BUSHING

EDUCTOR STOP

1шт.

16

BN313394

PIVOT

Block, Shaft

1шт.

17

BN311886

PLATE

SINGLE, SIZE 1

4шт.

18

BN307078

CLAMP

PAIR, 3/8 TUBE

4шт.

19

BN311888

CAP

ROUND, .375 ID X 3, BLK

1шт.

20

BN311889

SPRING

.50 X 2.00 X .067, SS

2шт.

21

BN50595

WASHER,1/2", Stainless

4шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

23

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

24

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

25

BN50604

COTTER PIN

1/8 X 1-1/2

4шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

27

BN55359

LOCK NUT,1/4"-20, SS

10шт.

28

86992215

LOCK NUT,1/2"-13, GC

8шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

1шт.

30

BN312967

LATCH

STOP

1шт.

31

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

32

BN50138

WASHER,1/4", SS

2шт.

33

BN313561

LOCK NUT

M12 1.75, NLN, SS

2шт.

34

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

4шт.

Not Shown

1шт.
