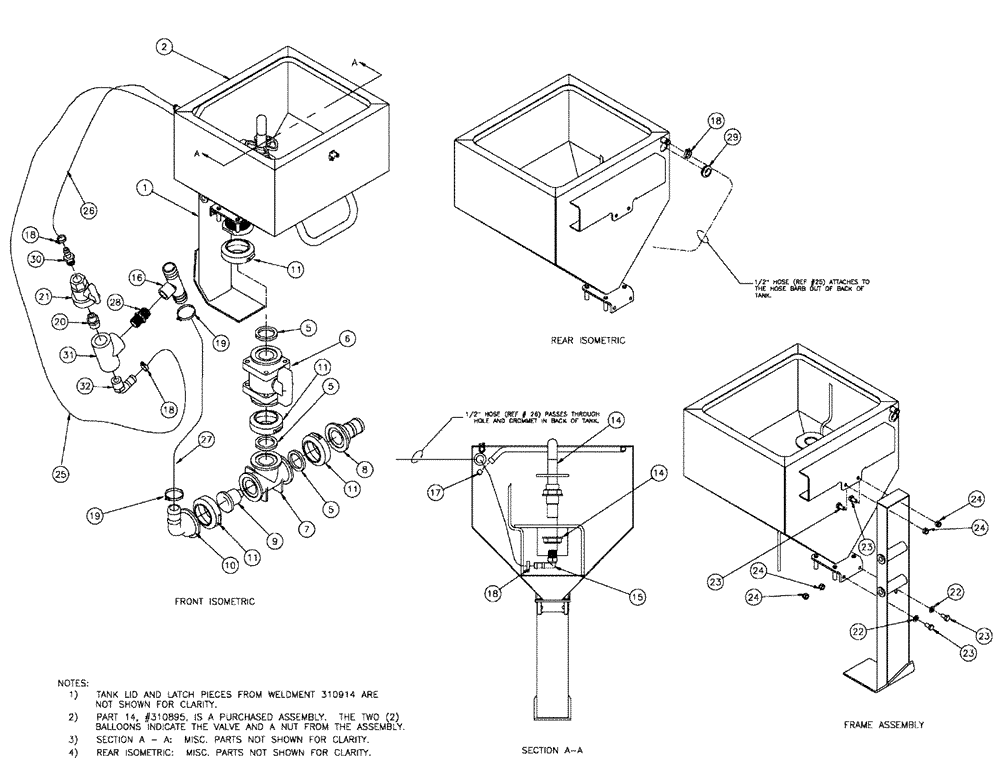

Запчасти Case IH 810 (11-001) - CHEMICAL EDUCTOR TANK ASSY Reload Control & Chemical Eductor

1

BN313388

SUPPORT

W/M, Eductor

1шт.

2

BN320983

TANK

Inductor 2

1шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

6

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

2" FL, W/T HNDL

1шт.

7

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

8

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

9

BN313919

VENTURI

CHEM EDUCTOR, 1/4

1шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

11

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

14

BN310895

VALVE

EDUCTOR, JUG RINSE

1шт.

15

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

16

BN311026

TEE

1 1/4" Hose Barb x 1 1/4" Hose Barb x 3/4" fp, Poly

1шт.

17

BN311050

PLUG

Pipe, 1/8" poly hex

1шт.

18

BN75956

CLAMP

ADJ #10SS

4шт.

19

87485002

CLAMP,1.06" - 2"

24 2.0/1.06 F SST 300

2шт.

20

BN73572

NIPPLE, LUBE

NIPPLE 3/4-1/2, POLY

1шт.

21

BN311100

VALVE

BALL, 1/2" POLY

1шт.

22

BN300497

WASHER,M8, 10.9

2шт.

23

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

24

86528579

NUT,M8 x 1.25

4шт.

25

BN311185

HOSE,0.50" ID x 24.00"

EPDM

1шт.

26

BN311186

HOSE,0.50" ID x 41.00"

EPDM

1шт.

27

BN24530

HOSE

1 1/4" EPDM x 6"

1шт.

28

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

29

BN85855

GROMMET

Lg, for 1/2" hose

1шт.

30

BN73510

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

BARB, 1/2" X 1/2" POLY

1шт.

31

BN73560

TEE

3/4" POLY PIPE

1шт.

32

BN73578

FITTING

BARB, 3/4 NPT X 1/2 HB, 90

1шт.
