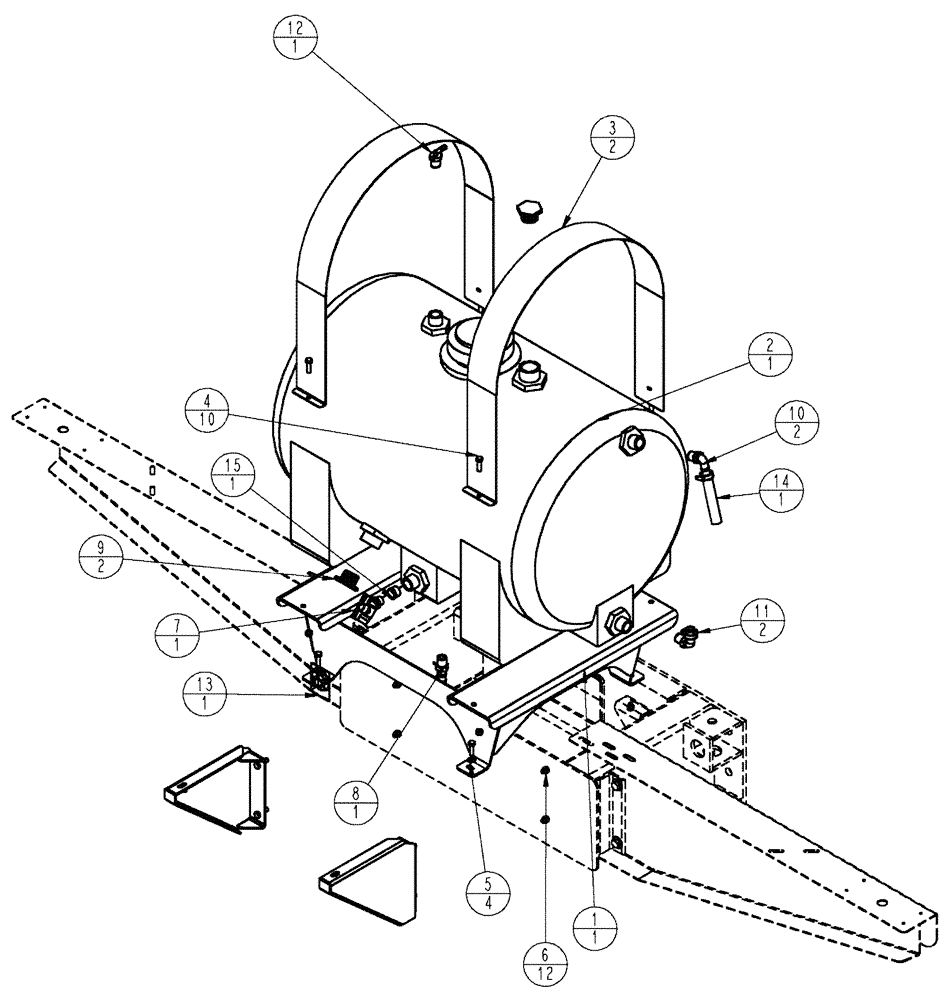

Запчасти Case IH 810 (12-013) - TANK GROUP, PRESSURE WASHER Pressure Washer

1

87593194

SUPPORT

tank frame

1шт.

2

86986818

TANK

65 Gallon, Poly, Black

1шт.

3

BN323943

BAND

W/M FOAMER TANK MT

2шт.

4

BN50258

BOLT,3/8"-16 X 1.25", Stainless

10шт.

5

BN50146

WASHER,3/8", Stainless

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN53817

DRAIN VALVE

BALL, .50 MP .50 MGH, BLUE

1шт.

8

BN73561

FITTING

STR, .75 MP .75 HB, PP

1шт.

9

BN73655

PLUG,1-1/4" Male NPT, Poly

1.25 MP, PP

2шт.

10

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

11

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

12

87265956

FITTING,3/8" Hose Barb x 3/4" Male NPT, Poly

3/8" Hose Barb X 3/4" NPT, Poly

1шт.

13

87265956

FITTING,3/8" Hose Barb x 3/4" Male NPT, Poly

3/8" Hose Barb X 3/4" NPT, Poly

1шт.

14

BN324754

HOSE,0.75" ID x 18.00"

Clear

1шт.

15

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

RDCR, .75 MP .50 FP, PP

1шт.
