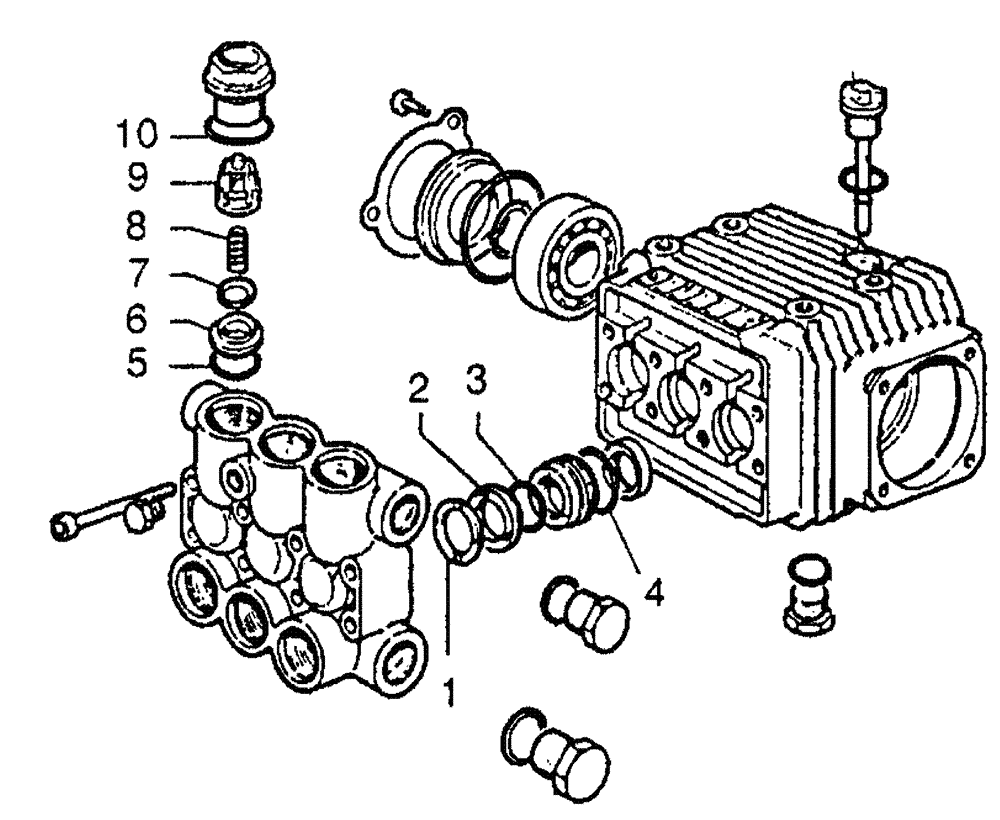

Запчасти Case IH 810 (12-005) - PRESSURE WASHER WATER PUMP Pressure Washer

BN313238

SEAL KIT

PISTON FOR WATER PUMP, INCLUDES REF. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD RING

3шт.

2

NSS

NOT SOLD SEPARAT

PACKING

3шт.

3

NSS

NOT SOLD SEPARAT

O-RING

3шт.

4

NSS

NOT SOLD SEPARAT

O-RING

3шт.

BN313239

CHECK VALVE

CHECK VALVE KIT FOR WATER PUMP, INCLUDES REF. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

6шт.

6

NSS

NOT SOLD SEPARAT

VALVE PLATE

6шт.

7

NSS

NOT SOLD SEPARAT

SPRING

6шт.

8

NSS

NOT SOLD SEPARAT

VALVE GUIDE

6шт.

9

NSS

NOT SOLD SEPARAT

O-RING

6шт.

10

NSS

NOT SOLD SEPARAT

CAP

6шт.

11

BN313235

PUMP

PRESSURE WASHER

1шт.
