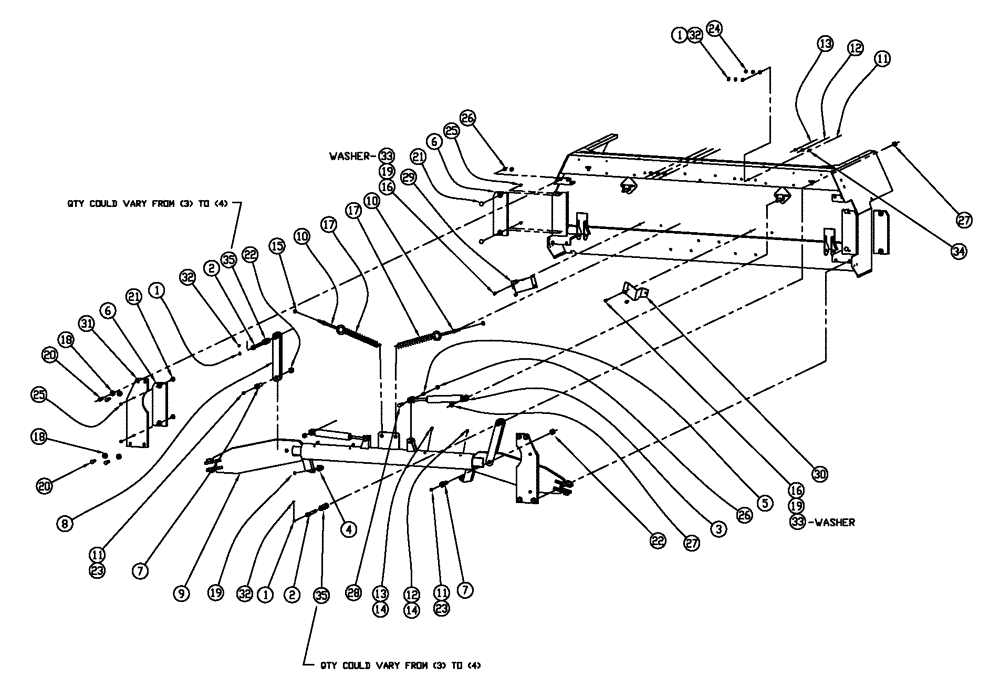

Запчасти Case IH 810 (01-004) - BOOM SWING GROUP Basic Unit

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

8шт.

2

BN15466

BOLT

Grease, 5/8"-11 x 6.0

2шт.

3

BN21565

SHOCK ABSORBER

2шт.

4

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

5

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

6

BN301598

WEAR PLATE

Boomswing, .75

4шт.

7

BN311095

BOLT

GREASE, 3/4-10 X 3

2шт.

8

BN35452

ARM

W/M, BOOMSWING

2шт.

9

87268852

ARM

Boomswing

1шт.

10

BN35463

EYEBOLT

1/2-13 UNC X 6

2шт.

11

BN35808

HOSE,0.13" ID x 30.00", SAE 100R7

Grease, 30"

2шт.

12

BN35809

HOSE,0.13" ID x 20.00", SAE 100R7

Grease

2шт.

13

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

14

BN35811

ADAPTER

45º, Style 2

4шт.

15

BN50071

NUT,1/2"-13, Stainless

4шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

17

BN50542

SPRING

2.21 OD X 14 .312 WIRE

2шт.

18

BN50595

WASHER,1/2", Stainless

8шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

20

BN50786

BOLT,1/2"-13 x 2", Stainless

8шт.

21

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

8шт.

22

87310323

NUT,3/4"-10, GR B, DOR

2шт.

23

BN53569

ELBOW

GREASE, 1/8 NPT BH90

2шт.

24

BN53570

BHD LOCK NUT

6шт.

25

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

26

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

10шт.

27

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

4шт.

28

BN55368

BOLT,1/2"-13 X 2-1/2", Stainless Steel

2шт.

29

87268859

STOP

Bumper, RH

1шт.

30

87268858

STOP

Bumper, LH

1шт.

31

BN68815

PLATE

BOLT ON BOOMSWING

2шт.

32

BN69951

CAP

Grease

8шт.

33

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

4шт.

34

BN35805

ADAPTER

str 1/8 npsm-nptf

6шт.

35

87310650

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

.656 x 1.312 x .150, HTS, DOR

8шт.
