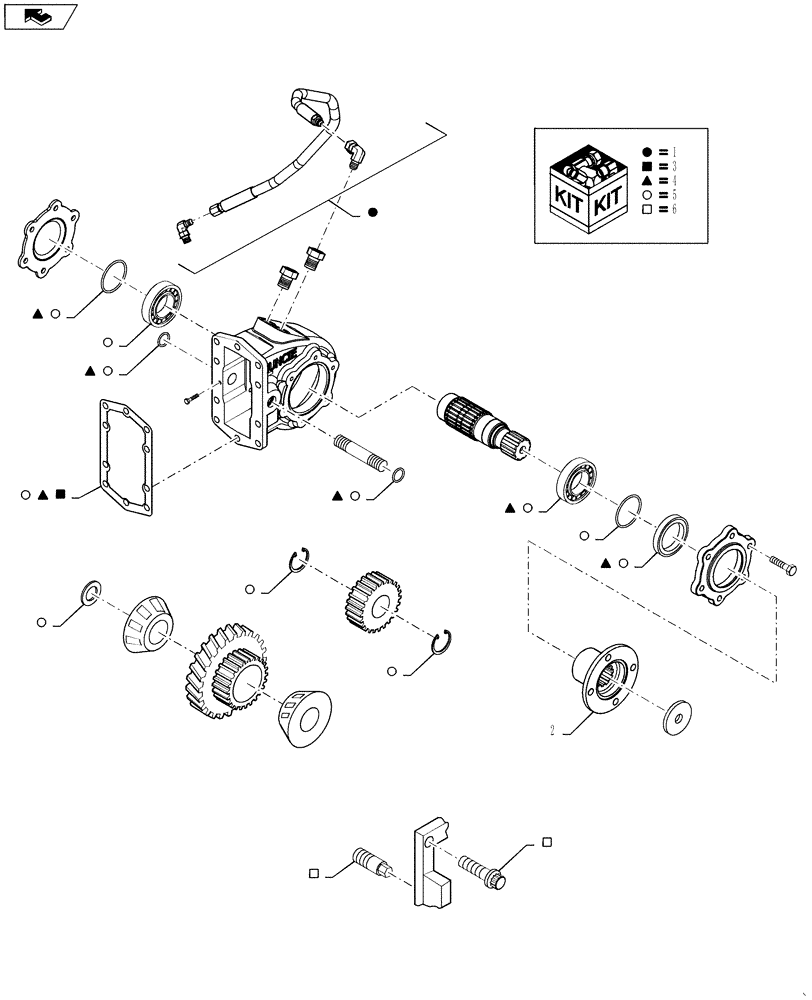

Запчасти Case IH 810 (06-005) - PTO GEARBOX Hydraulic Plumbing

1

BN304157

GEARBOX

PTO Gearbox, RH, With 1-1/2" Dia 10 Tooth Splined Output Shaft, Complete, Includes Ref 2 - 7

1шт.

1

BN304157R

REMAN-PTO GEARBOX A.

810 FLEX-AIR APPLICATOR, PTO Gearbox, RH, Complete (9/09-12/11)

1шт.

1

BN304157C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

87272067

FLANGE

1шт.

3

87272068

REPAIR KIT

Mounting Gasket, Located Between Transmission and PTO, And Instructions

1шт.

4

87272069

REPAIR KIT

Includes Mounting Gasket, Output Shaft Seal, 2 Output Shaft Orings, 2 Orings

1шт.

5

87272630

REPAIR KIT

Internal Seal Kit, Inlcudes Bearings, Mounting Gasket, Shims, Snap Rings, Orings, And Shaft Seal

1шт.

6

87272631

REPAIR KIT

Mounting Bolts, Includes 8 12pt Screws And 2 Alignment Studs

1шт.

7

87265711

HYDRAULIC HOSE,28.00", SAE 100R5

PTO To Transmission, Includes 2 Elbows

1шт.
