(06-004) - FITTING GROUP, PUMP, 3 WHEELER

Запчасти Case IH 810 (06-004) - FITTING GROUP, PUMP, 3 WHEELER Hydraulic Plumbing

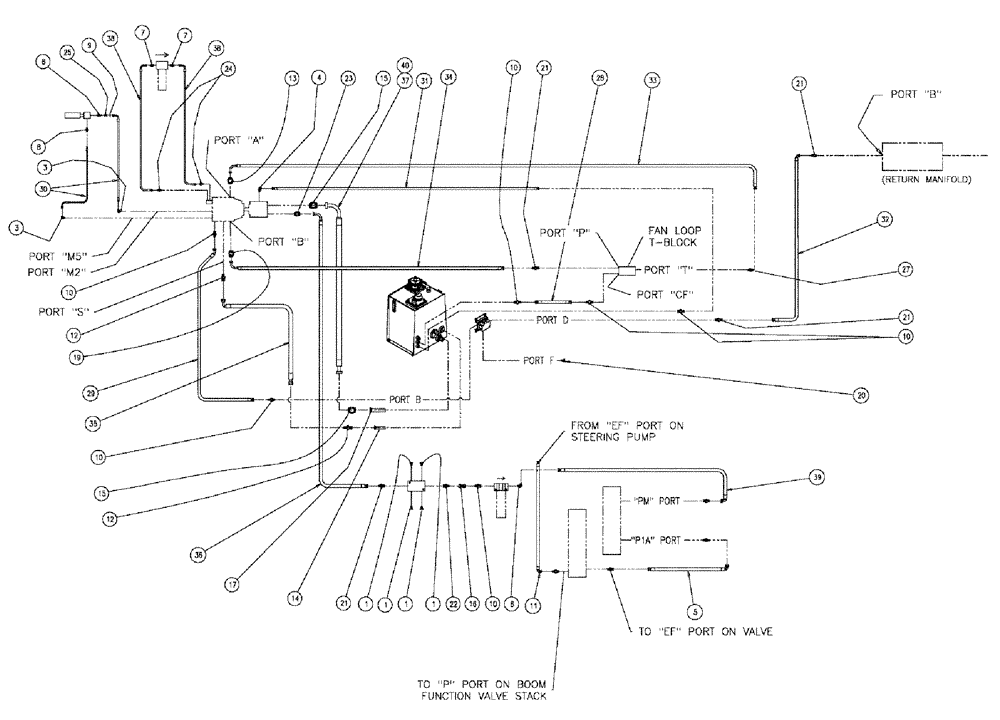

Схема запчастей Case IH 810 - (06-004) - FITTING GROUP, PUMP, 3 WHEELER Hydraulic Plumbing
1
5
22
4
3
15
19
10
32
33
24
40
9
20
21
39
10
21
14
10
1
8
37
17
7
1
35
31
27
3
30
8
25
21
21
23
15
10
38
12
34
28
13
7
10
36
8
38
12
1
16
20
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN21243

PLUG

Hex, 7/8"-14, O-Ring

4шт.

2

BN302660

FITTING

20MOR 20MB

1шт.

3

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

3a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

BN53590

ELBOW

12MOR-10MB x 90

1шт.

5

BN318887

HOSE ASSY.

12 X 25"

1шт.

6

BN302568

ELBOW

12MOR 12MB X 90

1шт.

7

BN302652

FITTING

8MOR 12MB

2шт.

8

BN302647

FITTING

6MOR 8MB

2шт.

9

BN305412

O-RING

FOR 6 FFOR

1шт.

10

BN302655

FITTING

12 MOR-12 MB

6шт.

11

84414995

HOSE

12 X 107"

1шт.

12

BN302660

FITTING

20MOR 20MB

1шт.

13

BN302793

REPAIR KIT

SPLIT FLANGE, 62 - 61

1шт.

14

BN303528

STRAINER ASSY.

32MB X 20 FB, 100

1шт.

15

BN303630

REPAIR KIT

SPLT FLANGE, 2, CODE 61

2шт.

16

BN307956

FITTING

12 FOR X 12 FOR X

1шт.

17

BN310209

FILTER STRAINER

48 MB 32SF, 100

1шт.

19

BN52315

KIT

1" Split Flange Code 62

1шт.

20

BN54270

PLUG

EXT. W/O-RING, #12

1шт.

21

BN57223

FITTING

16 MOR-16 MB

4шт.

22

BN57233

FITTING

12 MOR-16 MB

1шт.

23

BN67548

REPAIR KIT

1" SPLIT FLANGE, CODE 61

1шт.

24

BN302651

FITTING

8MOR 10MB

2шт.

25

342569A1

ORIFICE

.060-6 disc

1шт.

27

BN57223

FITTING

16 MOR-16 MB

5шт.

28

BN313285

HOSE

12 X 70

1шт.

29

87267897

HOSE

12 X 66"

1шт.

30

87267873

HOSE

4 X 29"

2шт.

31

BN311401

HOSE,47.00"

1шт.

32

87267890

HOSE

16 X 82"

1шт.

33

87269794

HOSE

16 X 95"

1шт.

34

87267895

HOSE

16 X 57"

1шт.

35

87267896

HOSE

20 X 64"

1шт.

36

BN313851

HOSE,42.50"

1шт.

37

BN313853

HOSE

32 X 77

1шт.

38

BN313282

HOSE

8 X 30

2шт.

39

87267891

HOSE

12 X 38"

1шт.

40

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

2шт.
