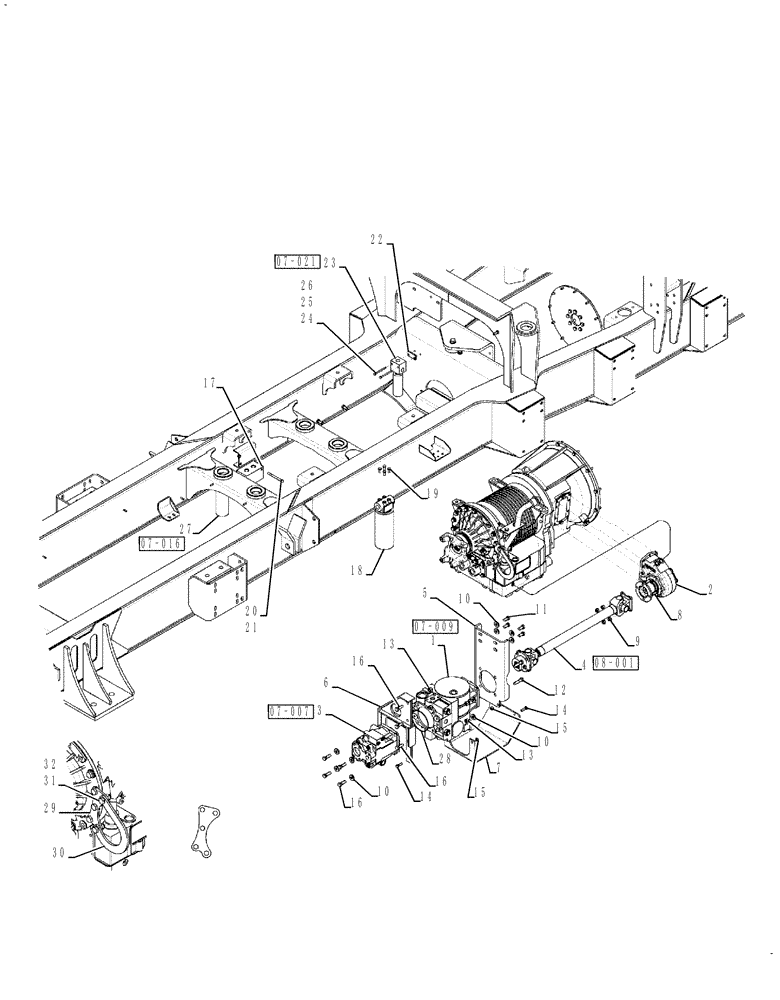

Запчасти Case IH 810 (06-003) - PUMP GROUP, 3 WHEELER Hydraulic Plumbing

1

BN309564

PUMP

75Cc, 90 Series, Auxiliary C

1шт.

See Fig. 07-009

1шт.

2

BN304157

GEARBOX

R.H., W/1.5" 10 SPLINE

1шт.

2

BN304157R

REMAN-PTO GEARBOX A.

810 FLEX-AIR APPLICATOR, 3 WHEELER, R.H. (9/09-12/11)

1шт.

2

BN304157C

CORE-PTO GEARBOX A.

Return Number

1шт.

2a

87265711

HYDRAULIC HOSE,28.00", SAE 100R5

PTO TO TRANS, Includes 2 Elbows

1шт.

Service Parts for Ref. 2

1шт.

2b

87272067

FLANGE

COMPANION, PTO

1шт.

Service Parts for Ref. 2

1шт.

2c

87272068

REPAIR KIT

Mounting Gasket, Located Between Transmission and PTO, And Instructions

1шт.

Service Parts for Ref. 2

1шт.

2d

87272069

REPAIR KIT

Includes Mounting Gasket, Output Shaft Seal, 2 Output Shaft Orings, 2 Orings

1шт.

Service Parts for Ref. 2

1шт.

2e

87272630

REPAIR KIT

Internal Seal Kit, Inlcudes Bearings, Mounting Gasket, Shims, Snap Rings, Orings, And Shaft Seal

1шт.

Service Parts for Ref. 2

1шт.

2f

87272631

REPAIR KIT

Mounting Bolts, Includes 8 12pt Screws And 2 Alignment Studs

1шт.

3

86986504

PUMP

Pressure Comp-60 cc

1шт.

See Fig. 07-007

1шт.

4

87541445

DRIVEN SHAFT

1шт.

See Fig. 08-001

1шт.

5

344374A1

PLATE

PUMP, FRONT

1шт.

6

BN304141

MOUNTING PLATE

REAR

1шт.

7

BN314397

GUARD

pumps

1шт.

8

87342890

BOLT,7/16"-14 x 1-1/4", G5, DOR

4шт.

9

87310320

NUT,7/16"-14, Grade B

4шт.

10

87529234

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

12шт.

11

87342964

BOLT,Hex, 1/2"-20 x 1", G5, DOR

4шт.

12

87342932

BOLT,Hex, 1/2"-13 x 2", G8, DOR

4шт.

13

87343666

NUT

Hex, 1/2"-13, G5

6шт.

14

87342768

BOLT,Hex, 3/8"-16 x 1-1/4", G5, Full Thd, DOR

4шт.

15

87343970

NUT,3/8"-16, G8, DOR

4шт.

16

87342928

BOLT,1/2"-13 x 1-1/2", Gr 8

8шт.

17

BN67505

MANIFOLD

METER FILTER

1шт.

18

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

18a

BN54258

SENDER UNIT

1шт.

Service Parts for Ref. 18

1шт.

18b

BN98626

INDICATOR

Filter #309664

1шт.

Service Parts for Ref. 18

1шт.

18c

N14232

FILTER

Element, Spin On

1шт.

Service Parts for Ref. 18

1шт.

19

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

20

87342787

BOLT

2шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

22

BN310240

SPACER

REMOTE SERVO

1шт.

23

84155893

VALVE POPPET

48 SEC, Motorized Relief

1шт.

See Fig. 07-021

1шт.

24

BN55367

BOLT

1/4-20 X 3-1/4", Stainless Steel

2шт.

25

BN50138

WASHER,1/4", SS

2шт.

26

BN55359

LOCK NUT,1/4"-20, SS

2шт.

27

87268746

FILTER

HI PRESSURE

1шт.

See Fig. 07-016

1шт.

28

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

.103 X 4.737 158 7

1шт.

29

84187116

MOUNT

Auxiliary Shaft Guard

1шт.

30

84187113

GUARD

Auxiliary Shaft

1шт.

31

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

32

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
